SGM Q7

Low-profile and compact RGBW flood, 2 000 RGBW LEDs, 110°, IP65, 28 000 lumens, DMX512

Full description

RGBW color LED flood blind strobe

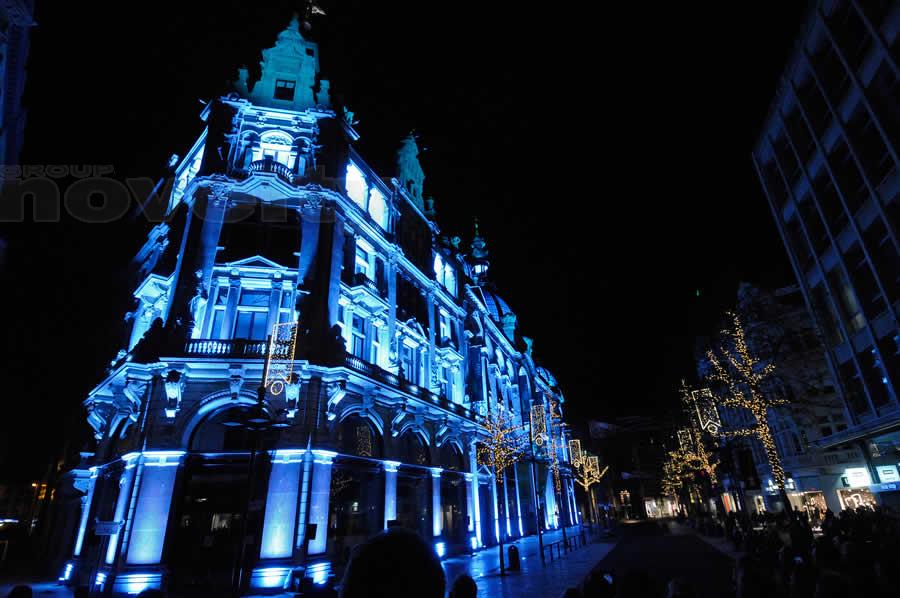

Q-7 is a low-profile and compact RGBW flood, blind and strobe. Containing 2,000 power RGBW LEDs it is a powerful adjustable multi-purpose fixture with a spread angle of 110°. Together with IP65 rating, a high output of 28,000 lumens and having a small physical footprint the Q-7 is an ideal fixture for outdoor use to light up buildings, facades, architectural structures and attractions.

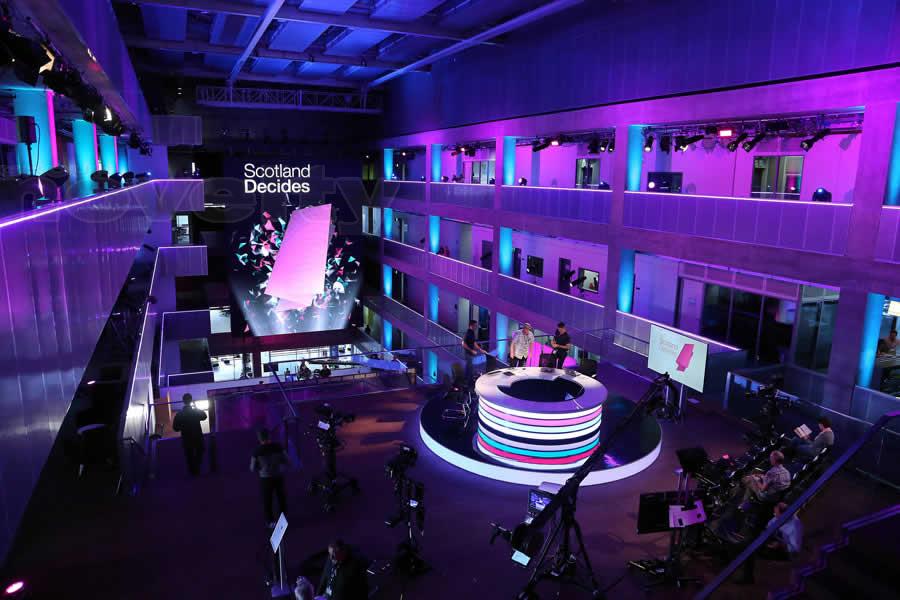

As versatile as it is, the Q-7 is also suitable for indoor applications such as TV studios, theaters and other applications where a flicker-free wide flood of colored light is requested, meanwhile providing the entertainment designs with a flashing bright color strobe effect.

Optics

  • Light source : 2,000 x RGBW SMD LEDs (5,700K)
  • LEDs expected lifetime : 50,000 hours*
  • Lens : 110° fixed

Photometric

  • Light output
    • 28,000 lumen (all LEDs on)
    • 3,100 lumen (red)
    • 6,300 lumen (green)
    • 1,500 lumen (blue)
    • 19,000 lumen (white)
  • Efficacy : 60 lm/W
  • CRI : Min. 80

Features

  • Pan/Tilt : + / - 90°

Electrical

  • AC Power : 208 - 250 V Nominal 50/60 Hz
  • Maximum power consumption : 465 W (all LEDs on)
  • Typical power consumption: 450 W (all LEDs on)
  • Power factor : 0.99 PF (230 V)

Programming and Control

  • Protocol : USITT DMX 512 A
  • Setting and addressing :
    • Wireless DMX (LumenRadio)
    • RDM
    • Stand alone mode (programmable by RFID)
    • Oled graphical display / 4 buttons
    • Software upgradable via Uploader cable (P/N:83062011)
  • DMX channels : 4, 6 or 8

Physical

  • Material : Aluminium
  • Lens : Tempered glas front
  • IP class : IP65

Installation

  • Mounting : Any, but facing 100% down for permanent installation
  • Rigging possibilities Stand bracket (included) or hanging (Omera Clamps included)
  • Safety features : Bottom mount for Safety wire

Thermal

  • Temperature range, Operating : -10° - 40°C (-14° - 104°F)
  • Temperature range, Start-up : -10° - 40°C (-14° - 104°F)
  •  Humidity (max.)? : ?98%
  • Cooling : Active, Forced air, temperature-regulated, low noise

Connections

  • DMX data in/out : IP65 Neutrik HD locking XLR 5-pin cable 0.5m, for DMX in and out
  • Power : Power cable 0.5m with bare ends

Conforms to

  • UL Std. 1573
  • 2006/95/EC: Low Voltage Directive : EN 60598-1, EN 60598-2-17, EN 62471
  • 2004/108/EC: EMC Directive : EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3
  • RoHS2 Directive : 2011/65/EU
