Klotz LSV2864
Boîtier de distribution IN Spkekon 8 / OUT 4+2 Spkeakon 4








Full description
Today the importance of rapid, orderly speaker cabling on stage is often underestimated. Now sound crews can save time and effort with the new SpeakerLink.
A sophisticated wiring concept enables a single KLOTZ SpeakerLink to replace the host of cable adapters that would otherwise be needed – thus saving costs.
Areas of use:
- As the 'input box' behind the amps, the SpeakerLink can take up to four different speaker channels and adapt them to an 8-pin SpeakON panel connector.
- Up to four speaker channels can thus be transmitted by a single speaker multicore (e.g. KLOTZ L84YSMF020, 20m).
- On the speaker side, KLOTZ SpeakerLink acts as an 'output box' and adapts the speaker channels to four (passive LS) or two (2-way active) NLT4MP panel connector.

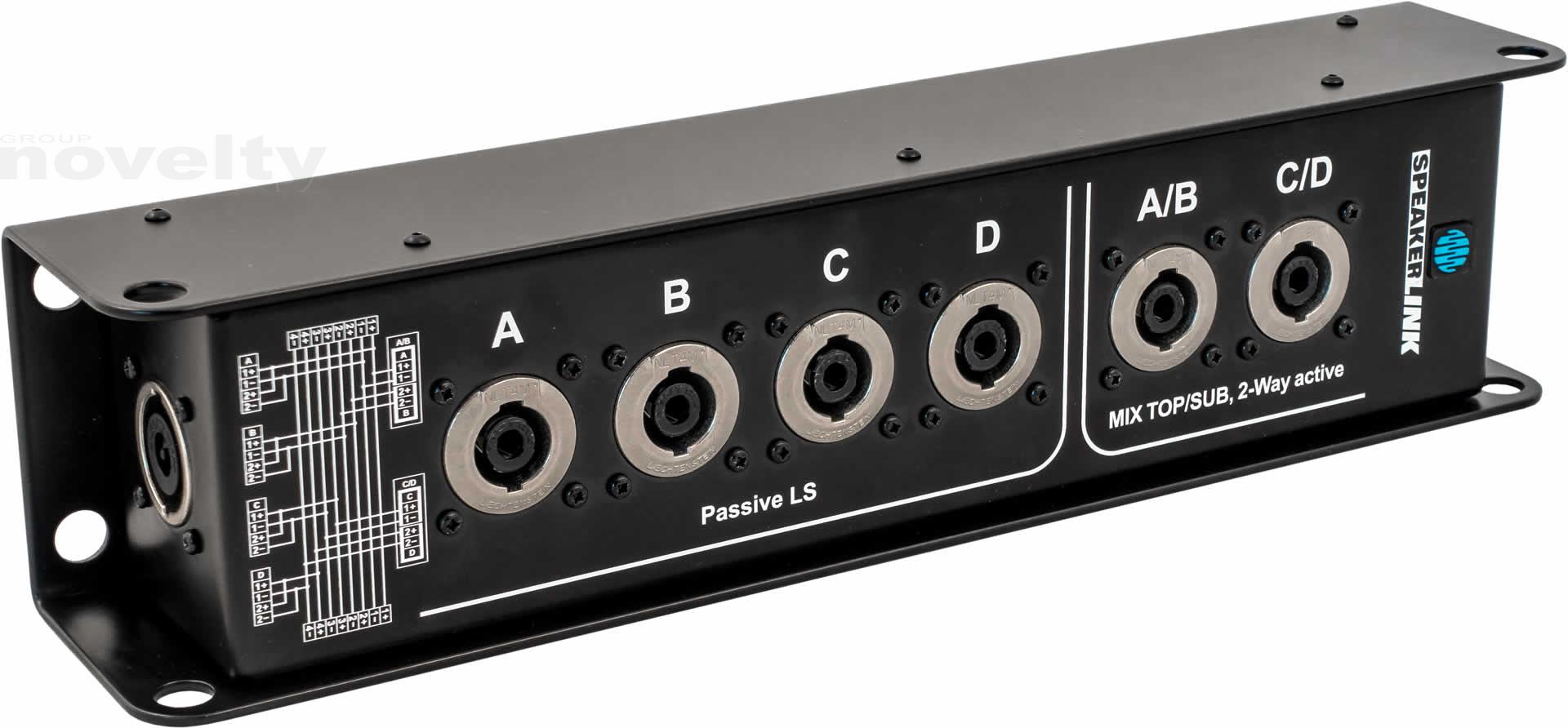

- A circuit diagram printed on the SpeakerLink housing provides the sound crew with an immediate overview of the SpeakerLink's key technical details.
Connection options:

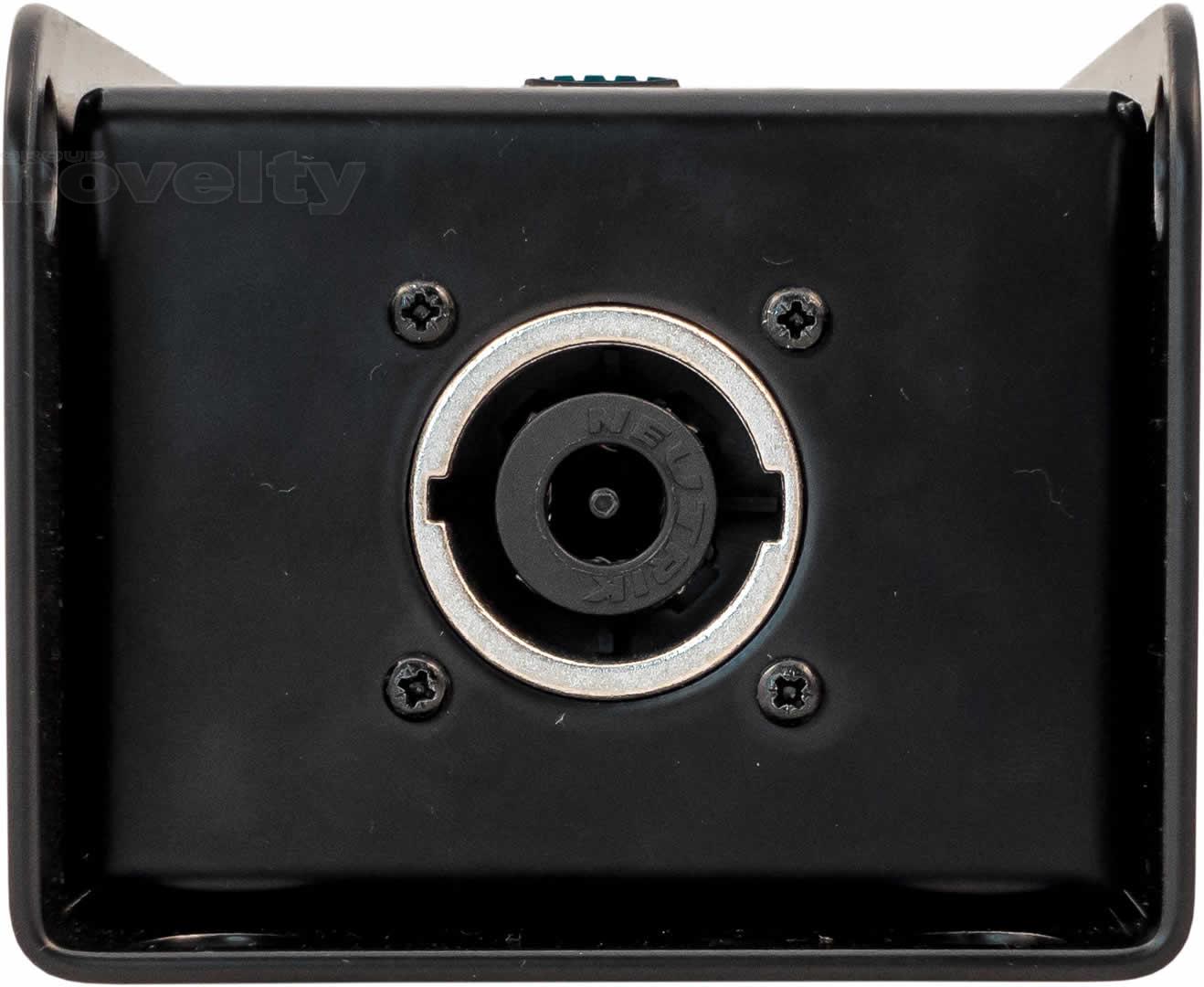

- Two NLT8MP panel connectors (for transmitting adapted channels)

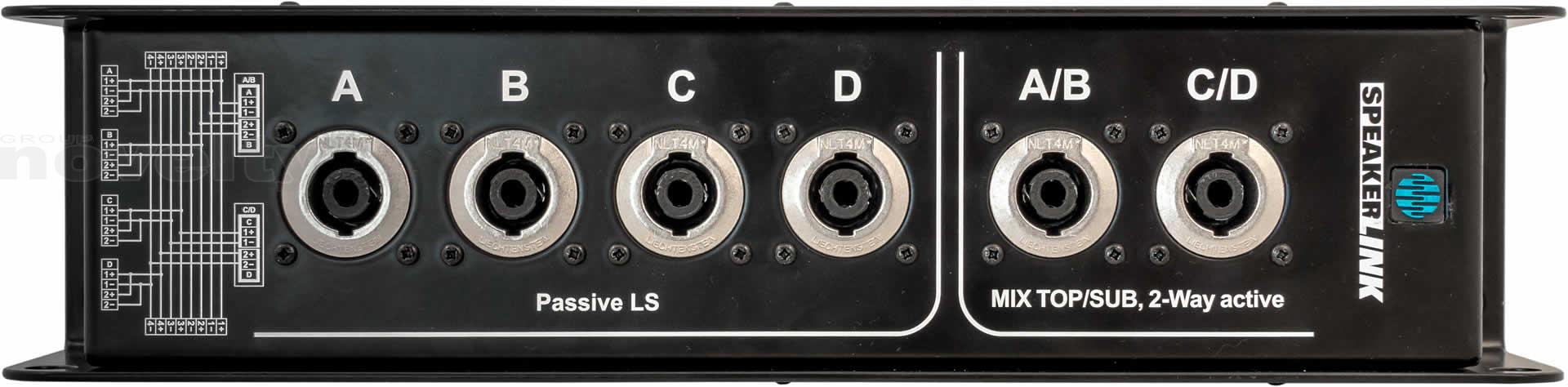

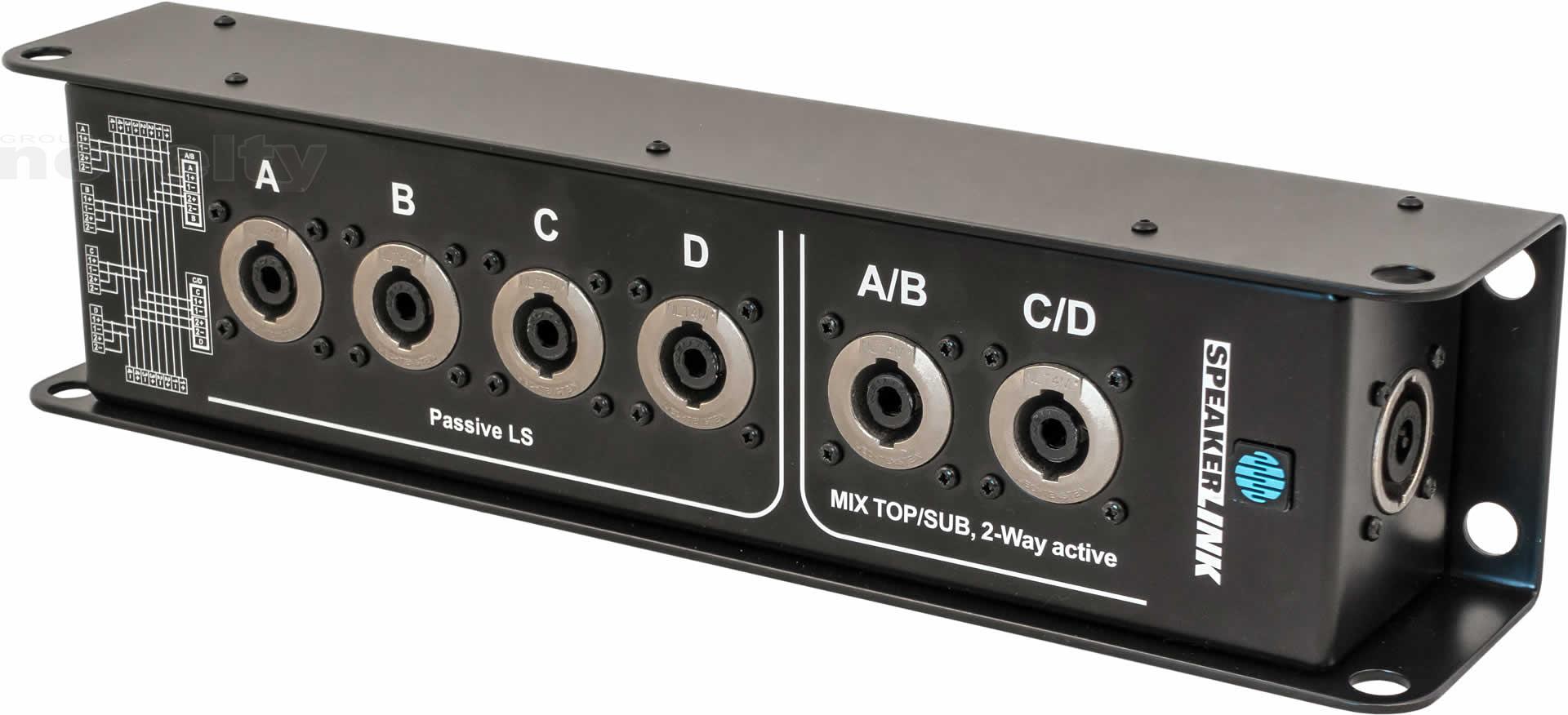

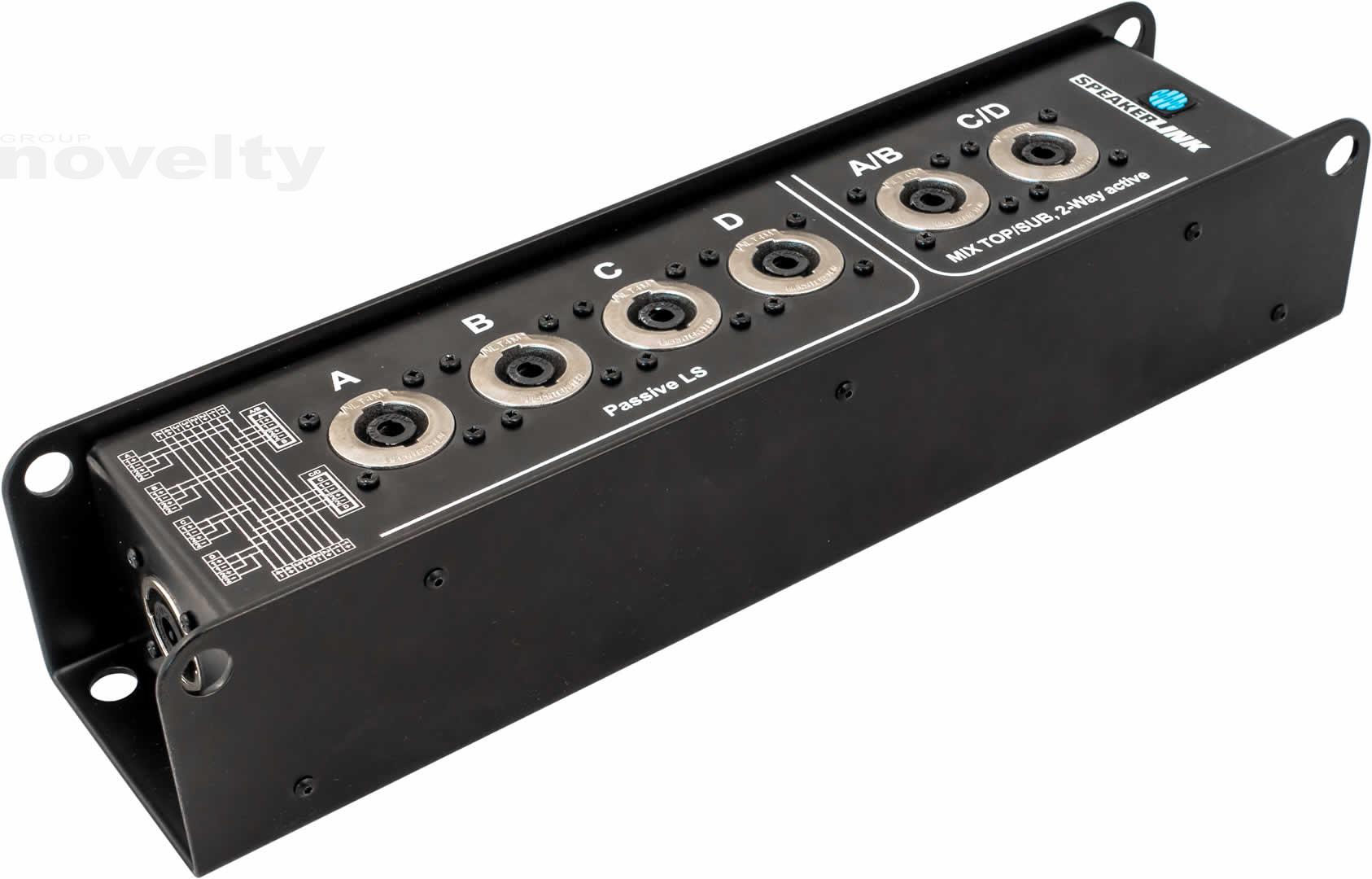

- Four NLT4MP panel connectors (passive LS)
- Two NLT4MP panel connectors (2-way active)
High-quality mechanical standards:
- Housing of 1.5 mm aluminium
- Secure attachment option: M10 thread in base
- Secure attachment option: 8 holes for safety cable
- Secure stand on four rubber feet
- Housing: metal, black matt RAL 9005
- Connector 1: 6x speakON 4p. male, metal / Neutrik
- Connector 2: 2x speakON 8p. male, metal / Neutrik
Informations
- Référence : LSV2864
- Codart : CHS8-4/LSV2864
