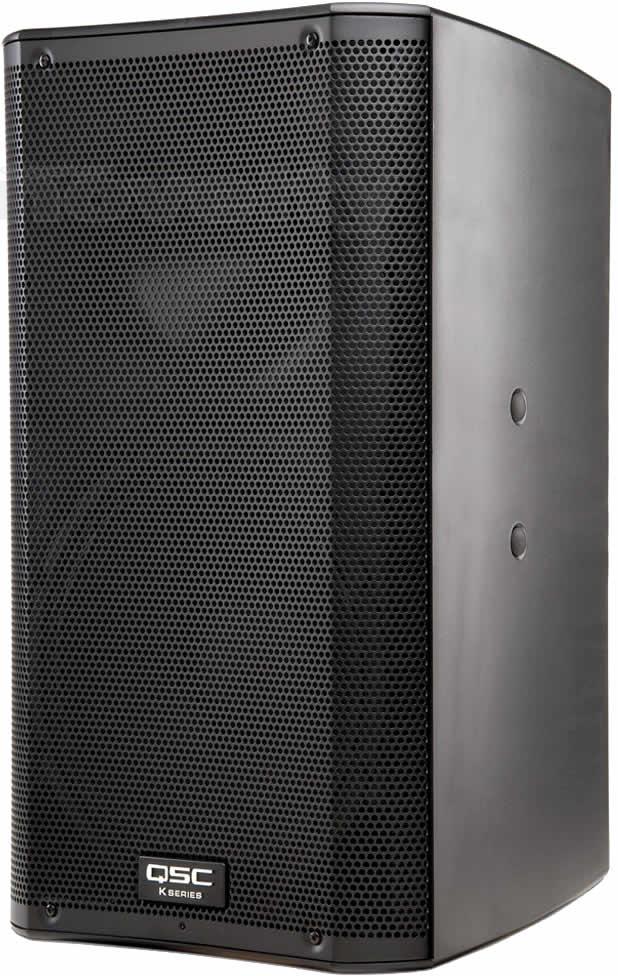

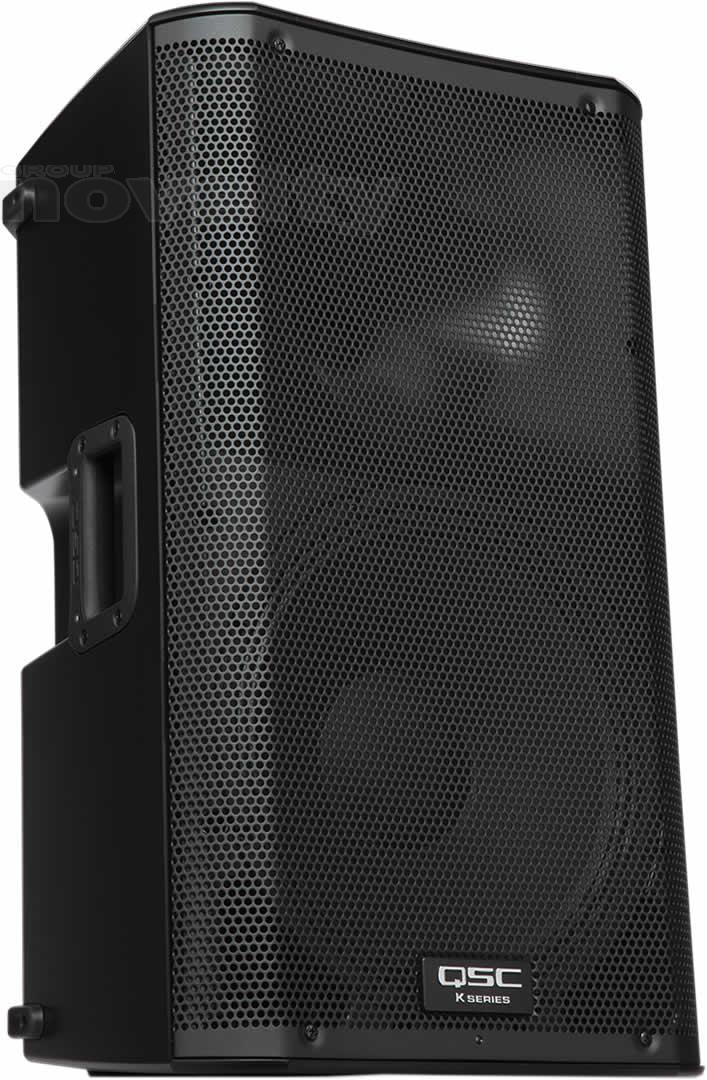

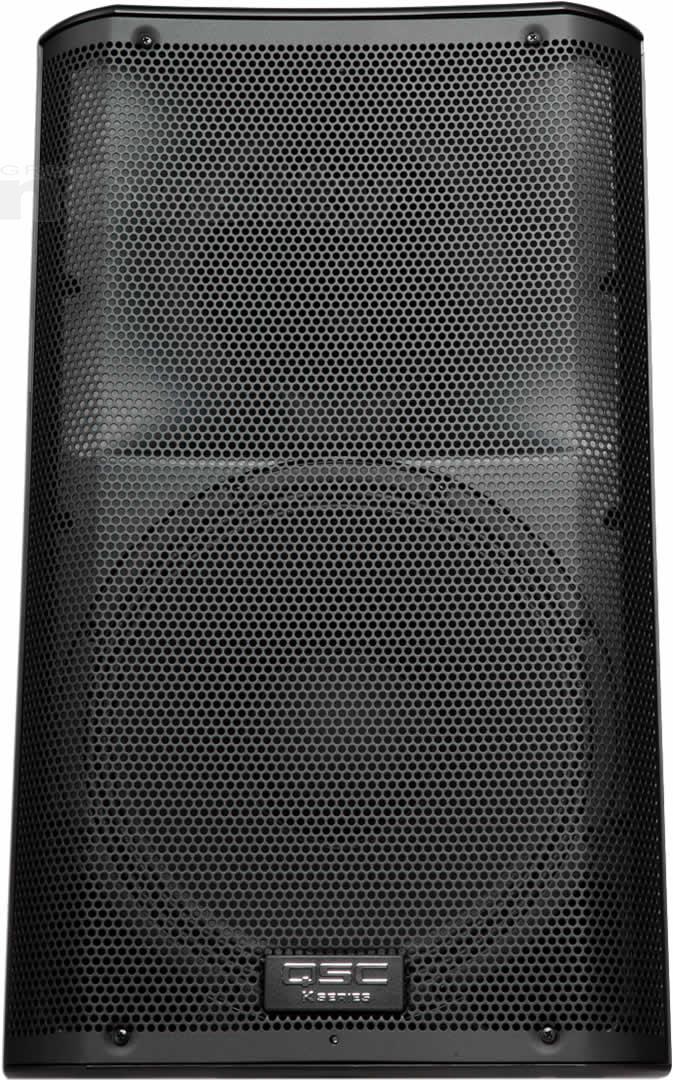

QSC K12

Full description

• 12” Woofer; 1.75” diaphragm compression driver
• 75° conical DMT coverage
• Maximum SPL 131 dB peak
• Attractive and professional appearance
• Rugged ABS enclosures

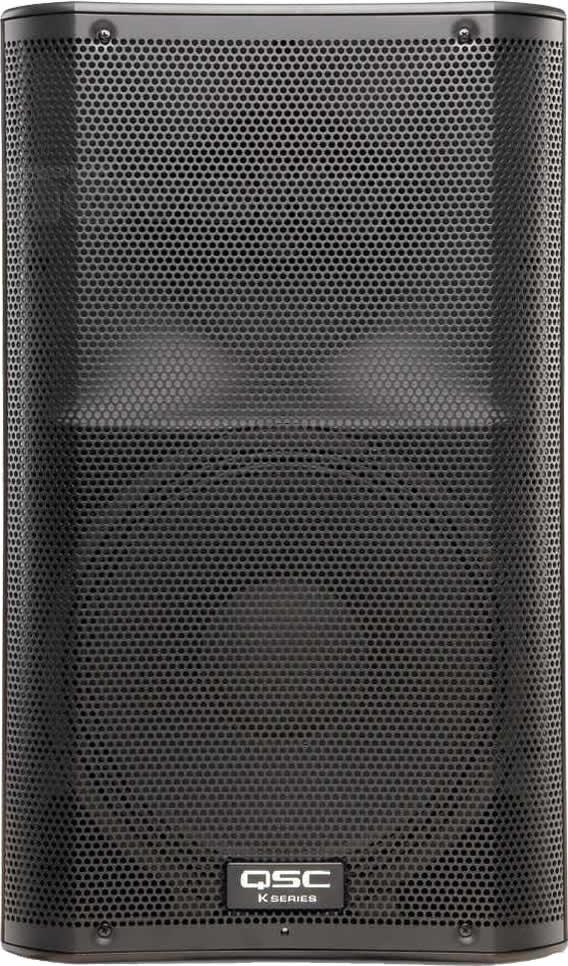

• 16-gauge powder coated steel grille
• 1000-watt continuous Class D power modules in all models
• Functions as a monitor wedge

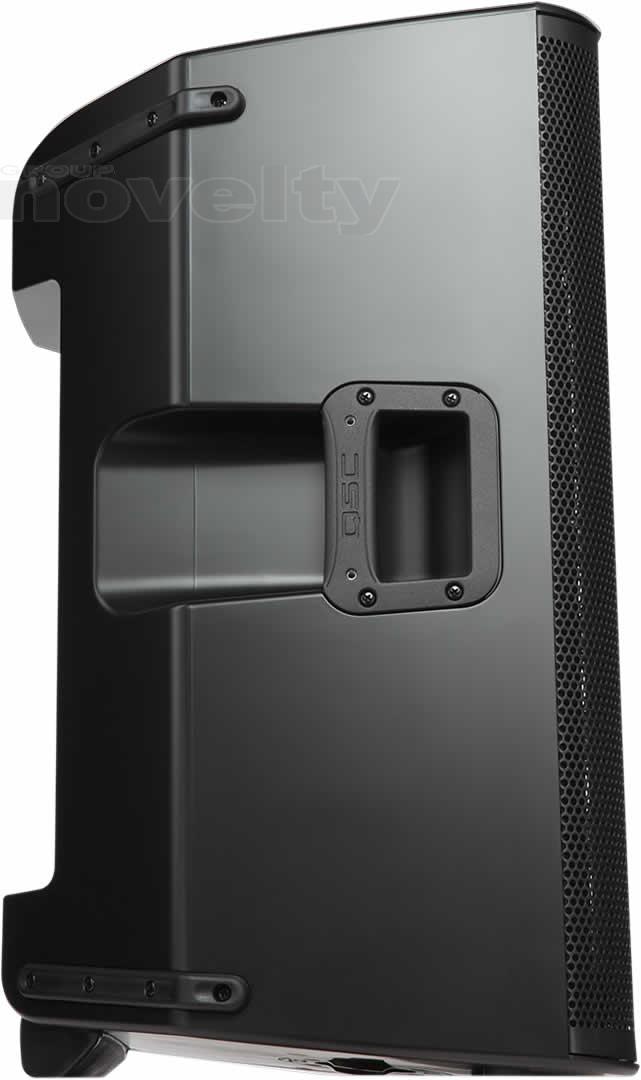

• Comfortable ergonomic handles
• 35 mm pole sockets with Tilt-Direct™
• M10 rigging points
• Eyebolt and yoke mount accessories available
• Onboard mixer with two combo XLR and ¼” inputs, and stereo RCA inputs, (three audio input sources); two direct channel outputs and single summed balanced output
• Extensive DSP enhances system performance:
  • DMT™ (Directivity Matched Transition) provides for matched LF and HF coverage across the entire listening area, eliminating unnatural "dead" or "hot" frequency zones.
  • Intrinsic Correction™, first featured in our high-end line-array products maps 65–75 spatially-averaged measurements to IIR and FIR filters that actively adjust time, frequency and amplitude response to a maximally flat band pass target. The result is a speaker that behaves equally well across the entire sound field.
  • DEEP™ and excursion limiting allow for extended low-frequency response by actively managing low-frequency transients without degradation of the underlying signal or adjacent frequencies.
  • GuardRail™ protection protects both the amplifier module and your performance from unnatural and destructive clipping.

SPECIFICATIONS

• Configuration : Multipurpose 2-way
• Transducers
  • Low-frequency : 12" cone transducer
  • High-frequency : 1.75" diaphragm compression driver
• Frequency Response (-6 dB) : 52 Hz - 18 kHz
• Frequency Range (-10 dB) : 48 Hz - 20 kHz
• Nominal Coverage (-6 dB) : 75° conical DMT
• Maximum SPL1 : 131 dB peak

Amplifiers

• Power Output2
  • 1000 W continuous Class D
  • (500 W LF, 500 W HF)
  • 2000 W peak
• Input Impedance
  • XLR / ¼": 40 kΩ balanced / 20 kΩ unbalanced
  • XLR / ¼" MIC mode: 2260Ω balanced
  • RCA: 10 kΩ
• Controls : Power, Gain A, Gain B, Mic/Line, LF Mode (Ext Sub/Norm/DEEP™), HF Mode (Flat/Vocal Boost), Front LED (On/Off/Limit)
• Indicators : Power, Signal A, Signal B, Standby, Limit, Mic

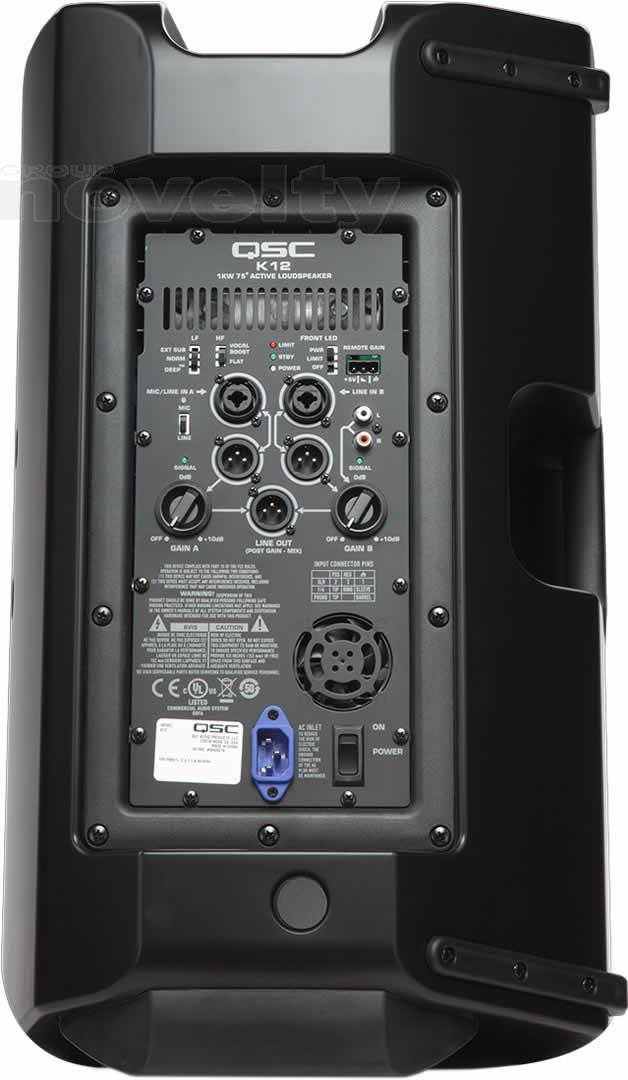

• Connectors : Balanced female XLR/¼" line/mic level input, Balanced female XLR/¼" line level input, Dual Balanced male XLR full range line level out , Balanced male XLR "mix" out, Stereo RCA line level input, Remote gain control, Locking IEC power connector
• Cooling : On demand, 50 mm variable speed fan
• Amplifier Protection : Thermal limiting, output overcurrent, overtemperature muting, GuardRail™
• Transducer Protection : Thermal limiting, excursion limiting
• AC Power Input : Universal power supply 100–240 VAC, 50 to 60 Hz
• AC Power Consumption (1/8 of full power)
  • 100 VAC, 2.3 A
  • 120 VAC, 2.01 A
  • 230 VAC, 1.13 A

Enclosure

• Material : Impact resistant ABS
• Finish : Black paint
• Grille : Rugged powder-coated steel
