L-ACOUSTICS X8
2 way speaker, LF = HP 8", HF = 1,5". Nominal directivity Axisymmetric 100°, 127db SPL, 8Ω
Full description

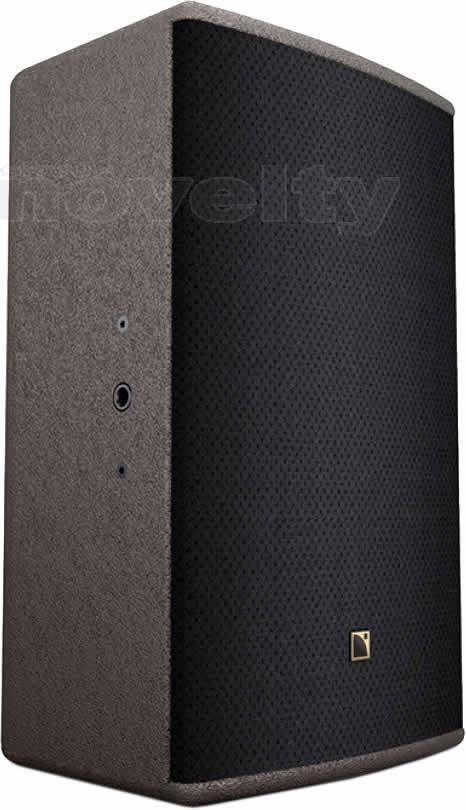

In the L-Acoustics coaxial X series, the X8 is the live monitoring enclosure. It operates from 60 Hz to 20 kHz.
The X8 features a 1.5’’ diaphragm compression driver coaxially- loaded by an 8’’ low frequency transducer in a bass-reflex enclosure with laminar vents. The internal passive crossover network uses custom filters.
The coaxial transducer arrangement and its partial horn produce a 100° axisymmetric directivity output with a smooth tonal response free of secondary lobes over the entire frequency range.
The X8 design makes it perfectly suited to live monitoring applications. With a cabinet combining the properties of birch and beech plywood, X8 low weight and elegance makes for an easy integration in any situation. It provides an angle setting of 35° with regard to vertical for stage monitoring.
The X8 can be pole-mounted using the integrated socket or flown and tilted in various orientations using its rigging accessories.
The amplified controllers L-Drive parameters ensure the linearization and protection of the transducers.
- Description : Passive 2-way coaxial enclosure, controlled and amplified by LA4X / LA8
- Usable bandwidth (-10 dB) : 60 Hz - 20 kHz ([X8])
- Maximum SPL : 127 dB ([X8])
- Nominal directivity Axisymmetric : 100°
- Monitoring angle : 35°
- Transducers :
- LF : 1 Å~ 8", bass-reflex, laminar vents
- HF: 1 Å~ 1.5" compression driver neodymium, partial horn
- Nominal impedance : 8 Ω
- Connectors IN : SpeakON®
- LINK : SpeakON®
- Rigging and handling : ~ handle
- DIN580-compatible M8 threaded insert
- 4 ~ M10 threaded inserts
- 35 mm pole socket
- Cabinet First grade : Baltic birch and beech plywood
- Finish : Dark Grey brown PANTONE 426C
- Pure white RAL 9010
- Custom RAL code on special order
- IP : IP43
