Taiden HCS-5100R/32

Full description

HCS-5100R is a series of IR receivers, which can receive up to 32 language channels. Both rechargeable Ni-MH battery and disposable battery can be used. The receiver is equipped with channel selector, volume control, power switch, Ø 3.5 mm stereo earphone jack, and charging circuit on the PCB. A LCD displays channel number with language name, received signal intensity, battery capacity and volume.

Features

• Compliant to IEC 61603-7 and IEC 60914
• Compatible with any other IR simultaneous interpretation system compliant to IEC 61603-7
• Independent intellectual property chipset for digital infrared processor, and DQPSK digital modulation/demodulation technology
• Transmitting in 2~8 MHz frequency band eliminates disturbance from high frequency lighting systems
• Channel selection via up/down button, at most 4,8,16 or 32 channels available
• Back-lighting LCD display with channel number, language name, battery and signal status indication
• Number of available channels is always the same as the number of channels in use by the system, eliminating the need to scroll through unused channels
• Adjustable volume
• Unique 270o super wide reception angle, ensuring perfect sound quality even when casually placed
• Audio signal automatically muted when signal is too low, ensuring that the user receives only high quality audio
• Ergonomically compact and elegant design
• Lightweight and handy receiver in conjunction with single earphone (EP-820AS/EP-828/EP-829SW) or headphone (HCS-5100PA) for easy and comfortable use
• Can be hung over the neck via a nice strap or fit into the shirt pocket
• Freedom of movement within the range of IR power radiator
• No limit to the receiver number within the IR power radiation range
• Works without errors, even in bright sunlight
• Built-in high precision rechargeable circuitry to prolong battery life

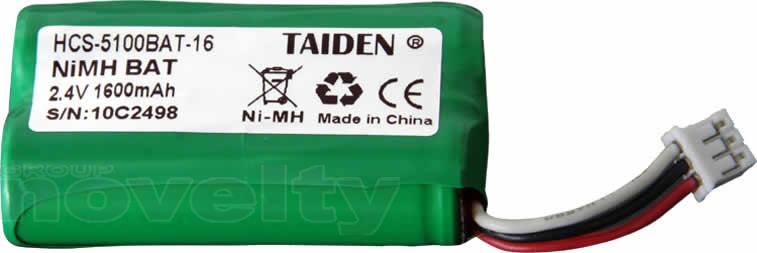

• Can be used with disposable batteries (2×AA alkaline batteries, not included) or environmentally-friendly Ni-MH rechargeable battery pack (not included)
• No power consumption when headphone is disconnected
• Measurement mode for easy checking of radiator coverage
• Can work with HCS-5300 digital infrared wireless conference system and achieve up to 1+3 channels infrared wireless simultaneous interpretation

Controls and Indicators

• LCD displays channel number, language name, battery capacity, signal intensity and volume Power switch Channel selector buttons Volume control buttons

Interconnections

• Ø 3.5 mm stereo earphone jack
• Charging contacts
