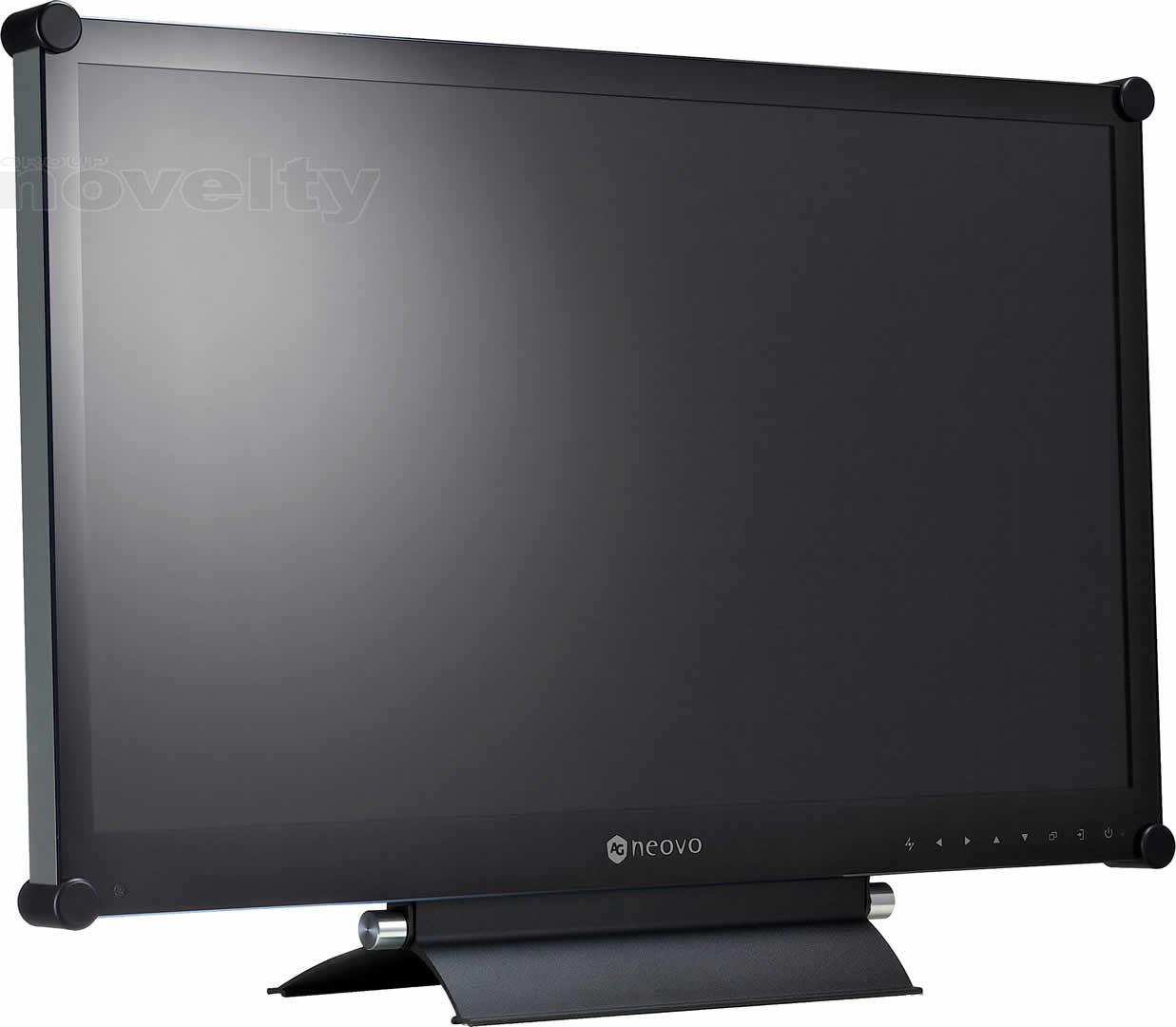

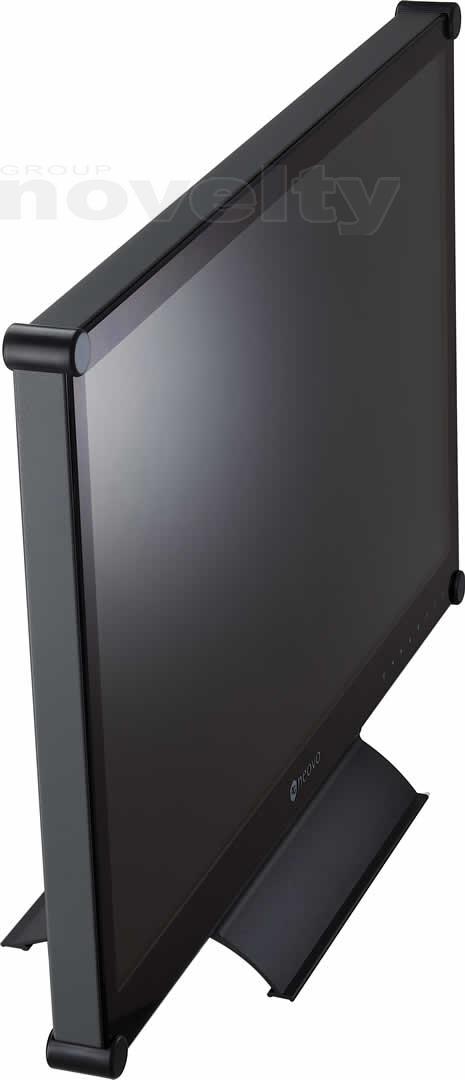

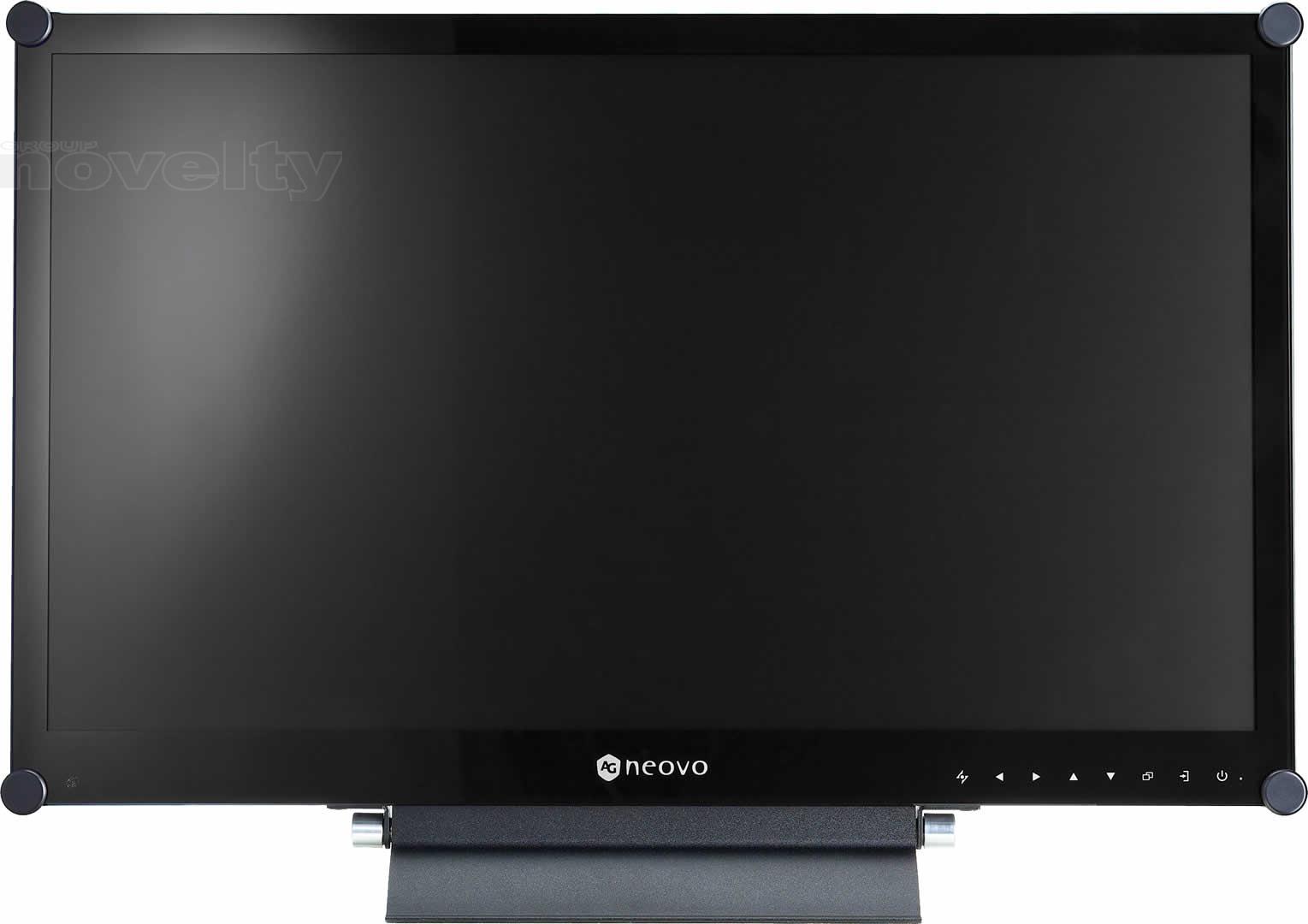

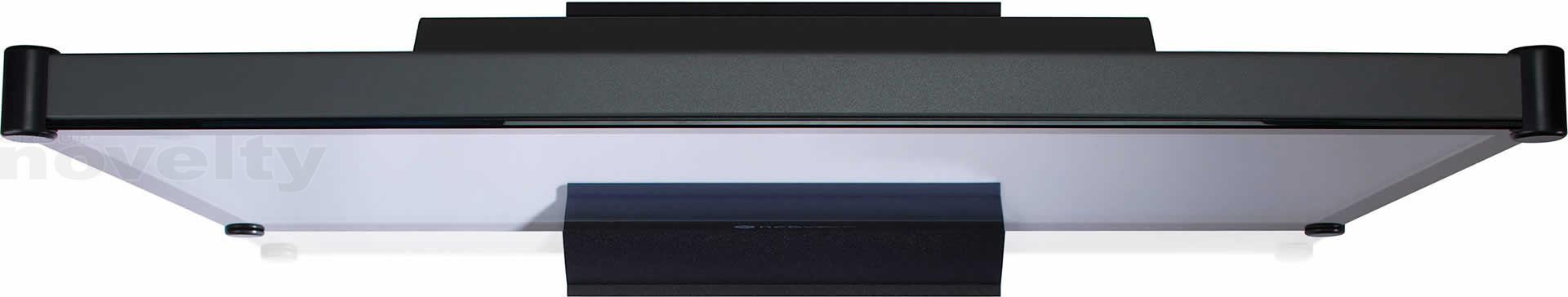

NEOVO HX-24

Full description

On top of Full HD 1920 x 1080 resolution and LED backlighting, the HX-24 features SDI inputs that make it possible to receive megapixel images directly from HD-SDI devices without signal interruption or video delay. The solid protection of NeoV™ Optical Glass and Anti-Burn-in™ technologies makes it a fitting choice for a full spectrum of professional applications and public places—from banks to hotels and casinos. Durability stands out as a priority for this mission-critical 24/7 apparatus—its metal casing is matched by meticulously selected components to ensure impeccable nonstop operations.

Superb Image Quality Guaranteed

The built-in SDI inputs offer uncompressed real-time HD image quality.

OnDuty 24/7 Capabilities

The HX-24 conforms industrial standards to high quality requirements. Rigorous component selection combining with distinctive designs ensure the HX-24 can be relied on for tough assignments.

For Longer Connectivity

Capable of receiving digital video over 75Ω coaxial cable at great length using RG6 cable or equivalent.

• 3G-SDI: 100m/ RG6
• HD-SDI: 150m/ RG6
• SD-SDI: 300m/ RG6

SDI Serial Digital Looping Through

The HX-24 comes with SDI input and output so the signal can be looped through.

Features

• 1920 x 1080 Full HD resolution
• NeoV™ Optical Glass
• Anti-Burn-in™ Technology
• AIP technology: PIP and PBP functions; 3D Comb Filter/ Deinterlace/ Noise Reduction;
• Image rotation function / Freeze

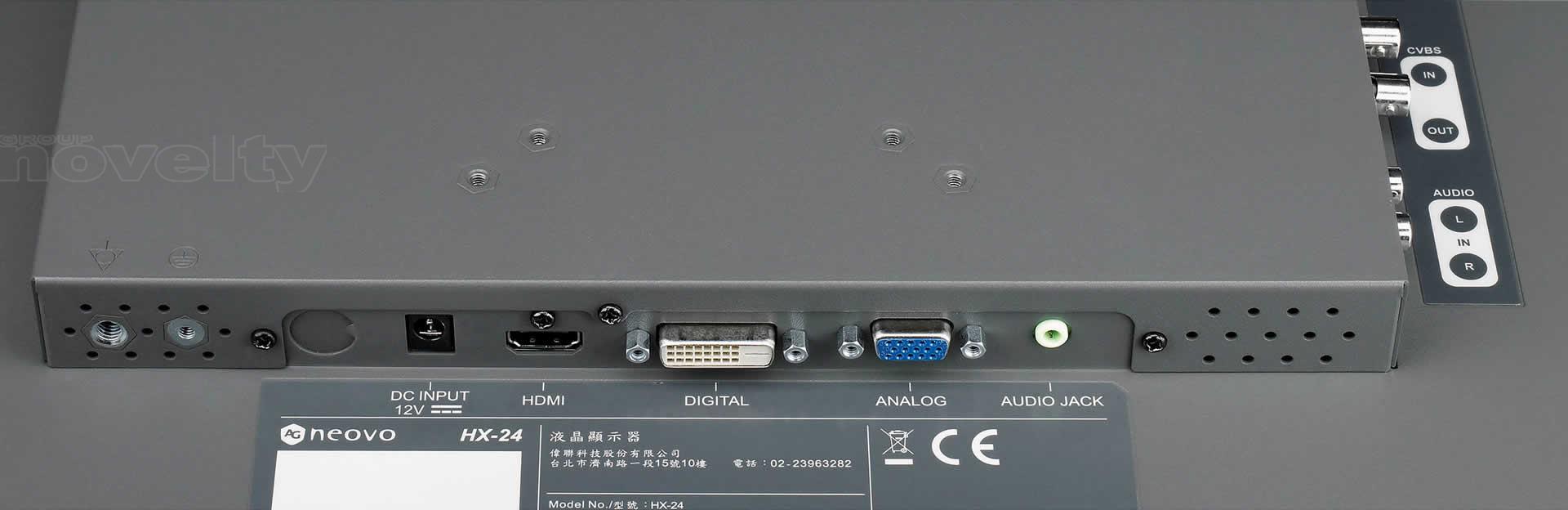

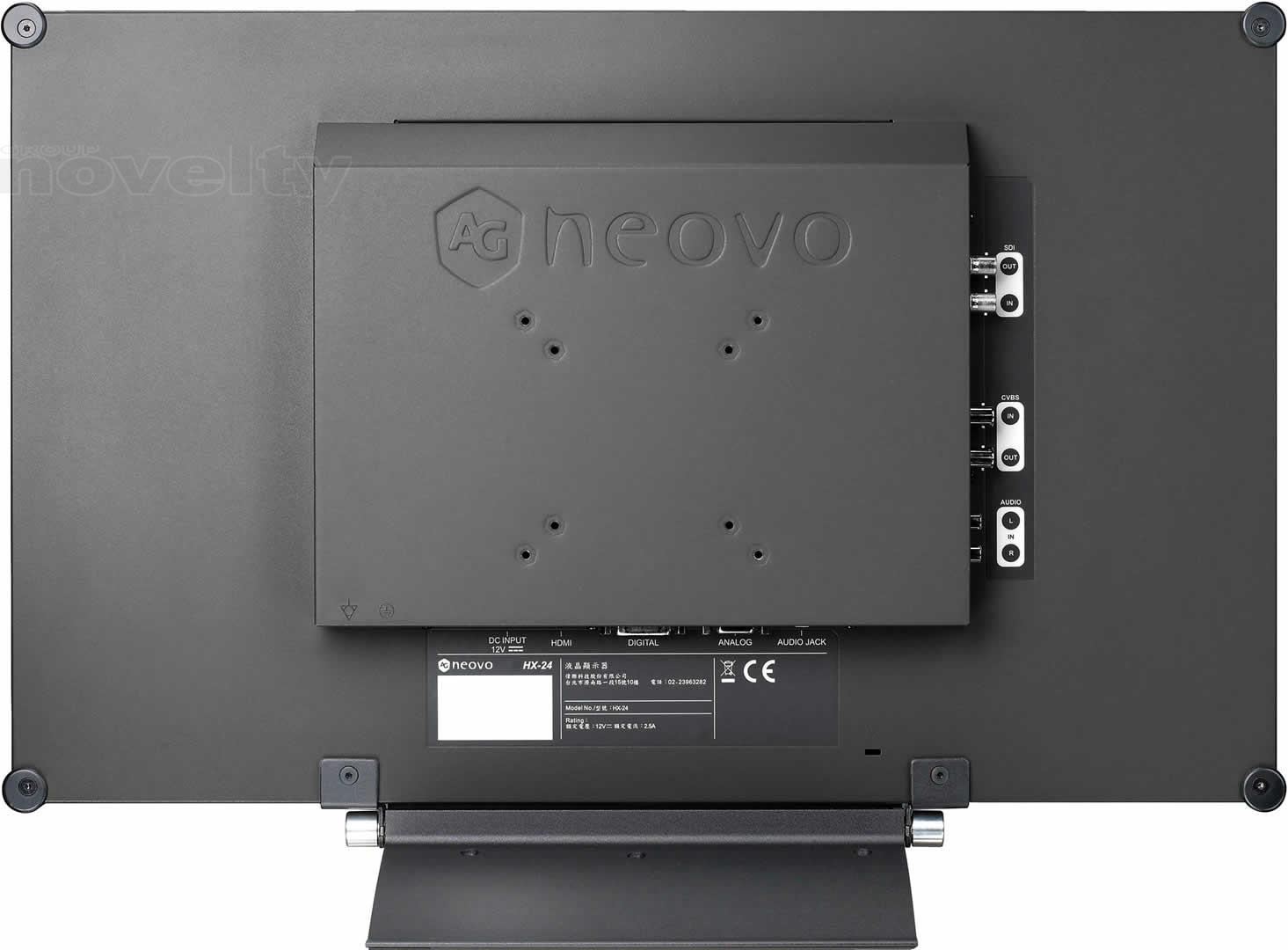

• Versatile inputs: 3G SDI in/out, CVBS in/out, HDMI, DVI, VGA, Audio in
• SDI connection supports 3Gb/s, 1.5 Gb/s HD, SD SDI video inputs
• Capable of receiving digital video over 75Ω coaxial cable at great length using RG6 cable or equivalent
• SDI serial digital looping through
• Embedded audio in SDI up to 8 channels of 48kHz
• EcoSmart Sensor automatically adjusts backlight according to ambient lighting condition
• Black-level alignment
• Durable metal housing
• Rigorous screening of the components for mission-critical 24/7 applications
• EU Energy Efficiency Classes
