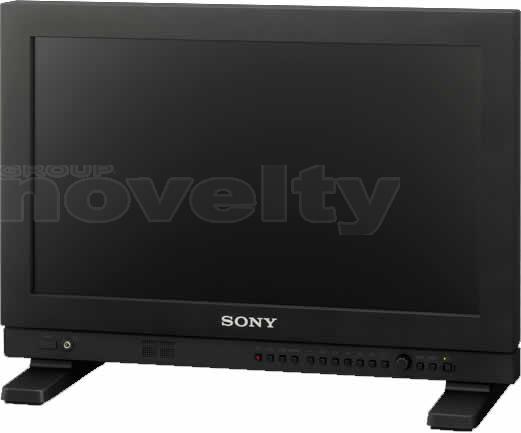

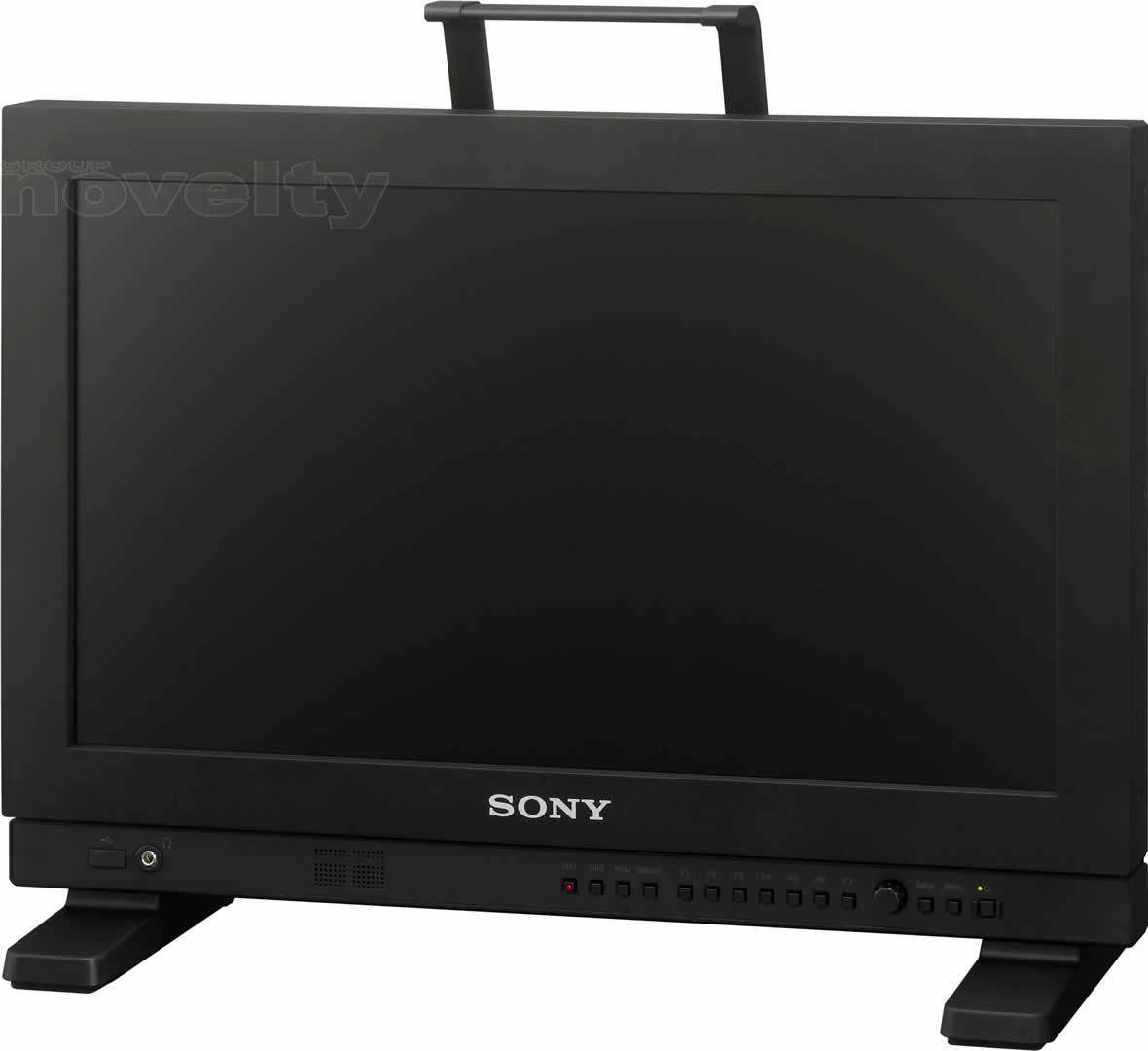

SONY LMD-A170

Full description

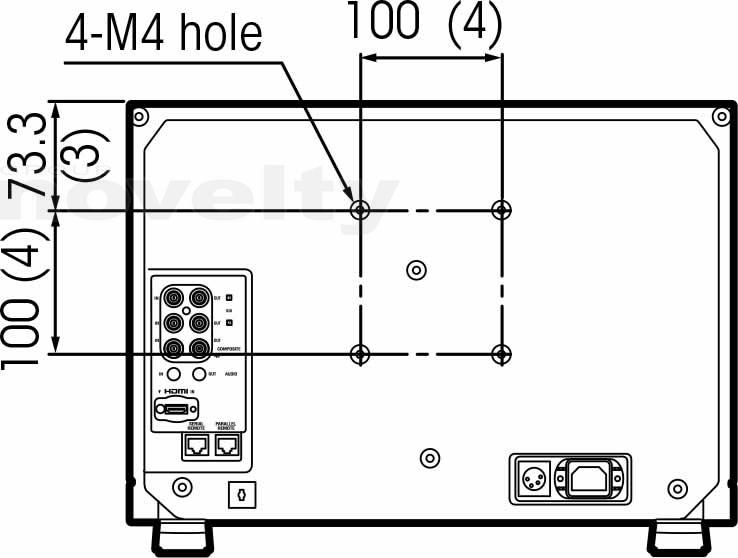

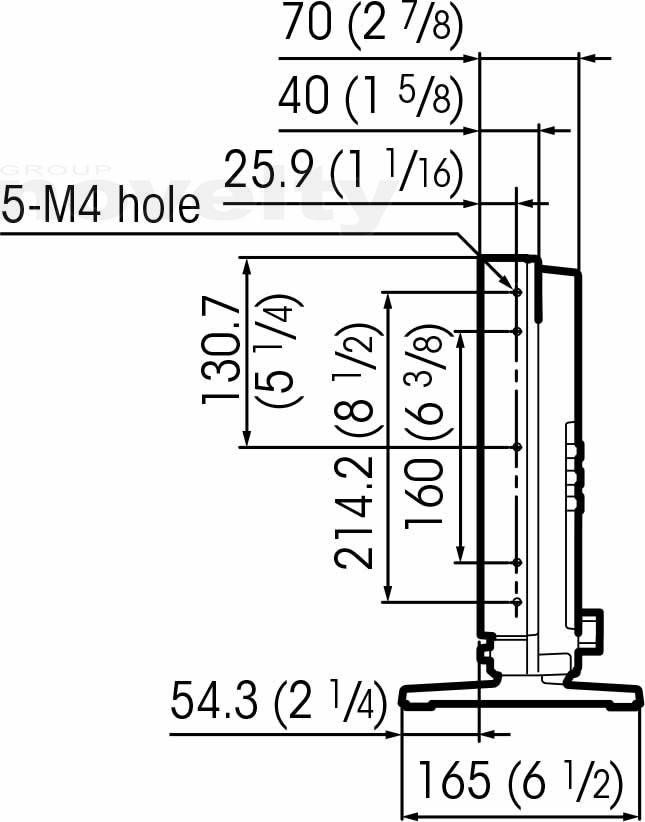

The LMD-A170 17-inch LMD-A Series LCD monitor offers Full HD resolution, along with a lightweight and compact design. There is more than a 12% to 22% reduction in mass, 30% reduction in depth, and more than 25% reduction in power consumption, compared to Sony’s previous models. The LMD-A Series offers the same user-interface design, convenient features, functions and operability as PVM-A Series OLED picture monitors. This consistency between the PVM-A and LMD-A Series brings great user benefits when both types of monitor are used in the same network. Furthermore, LMD-A Series monitors provide versatility for a wide range of user applications both in the studio and in the field. These include DC operation, VESA mount and yoke-mount holes, and an optional protection kit (BKM-PL17). In addition, the latest camera-linkage functions, such as camera and lens metadata display and a Picture and Picture function, provide the convenience of working efficiency both in the field and in the post process.

Stylish lightweight and slim body with industry’s widest viewing angle

Robust double-coated paint finish and stylish sharp edges chassis. Perfect for group monitoring. More than a 12% to 22% reduction in mass, 30% reduction in depth, and more than 25% reduction in power consumption, compared to Sony’s previous models. It provides cost savings for transportation and power consumption. It also saves space and weight in digital galleries.

Latest camera-linkage functions

Includes camera and lens metadata display and a Picture and Picture function with side by side, wipe, blending, difference and auto input switching. Ideal for OnSet and live production monitoring.

User presets and password protection

Secure your monitor settings for greater peace of mind. Five user presets are available. One colour temperature memory USER1 can also be password protected.

2K format display and Dual-Link HD-SDI mode

This feature offers a cost effective 2K monitoring solution, ideal for OnSet digital cinematography. In addition, a Dual-link HD-SDI input is available.

Multiple monitors firmware upgrade utility

Save you time to upgrade simultaneously your monitors through your network.

Technical Specifications

Picture Performance

• Panel : a-Si TFT Active Matrix LCD
• Picture Size (Diagonal) : 16.5 inches
• Effective Picture Size (H x V) : 365.8 x 205.7 mm / 14 1/2 x 8 1/8 inches
• Resolution (H x V) : 1920 x 1080 pixels (Full HD)
• Aspect : 16:9
• Pixel Efficiency : 99.99%
• Colors : Approx. 1,073 million colours
• Viewing Angle (Panel Specification) : 89°/89°/89°/89° (typical) (up/down/left/right contrast > 10:1)
• Normal Scan : 0% scan

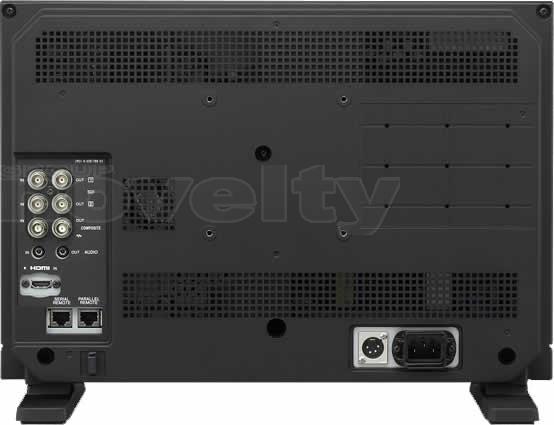

Input

• Composite Input : BNC (x1), 1 Vp-p ±3dB, sync negative
• SDI Input : BNC (x2)
• HDMI Input : HDMI (x1) (HDCP correspondence)
• Audio Input : Stereo mini jack (x1), -5 dBu 47 kΩ or higher
• Parallel Remote : RJ-45 Modular connector 8-pin (x1) (Pin-assignable)
• Serial Remote (LAN) : RJ-45 (x1) (Ethernet, 10BASE-T/100BASE-TX)
• DC Input : XLR-type 4-pin (male) (x1), DC 12 V to 17 V (output impedance 0.05 Ω or less)

Output

• Composite Output : BNC (x1), Loop-through, with 75 Ω automatic terminal function
• SDI Output : BNC (x2), output signal amplitude: 800 mVp-p ±10%, output impedance: 75 Ω unbalanced
• Audio Monitor Output : Stereo mini jack (x1)
• Speaker (Built-in) Output : 1.0 W (Monaural)
• Headphone Output : Stereo mini jack (x1)

General

• Power Requirements
  • 100 V to 240 V AC, 0.5 A to 0.2 A, 50/60 Hz
  • DC 12 V to 17 V, 3.6 A to 2.5 A
• Power Consumption
  • Approx. 49 W (max.)
  • Approx. 42 W (average power consumption in the default sattus)
• Inrush Current
  • (1) Maximum possible inrush current at initial switch-on (Voltage changes caused by manual switching): 60 A peak, 0.3 A r.m.s. (240V AC)
  • (2) Inrush current after a mains interruption of five seconds (Voltage changes caused at zero-crossing): 48 A peak, 0.2 A r.m.s. (240V AC)
• Operating Temperature
  • 0°C to 35°C (Recommended: 20°C to 30°C)
  • 32°F to 95°F (Recommended: 68°F to 86°F)
• Operating Humidity : 30% to 85% (no condensation)
• Storage/Transport Temperature
  • -20°C to +60°C
  • -4°F to +140°F
• Storage/Transport Humidity : 0% to 90%
• Operating/Storage/Transport Pressure : 700 hPa to 1060 hPa
