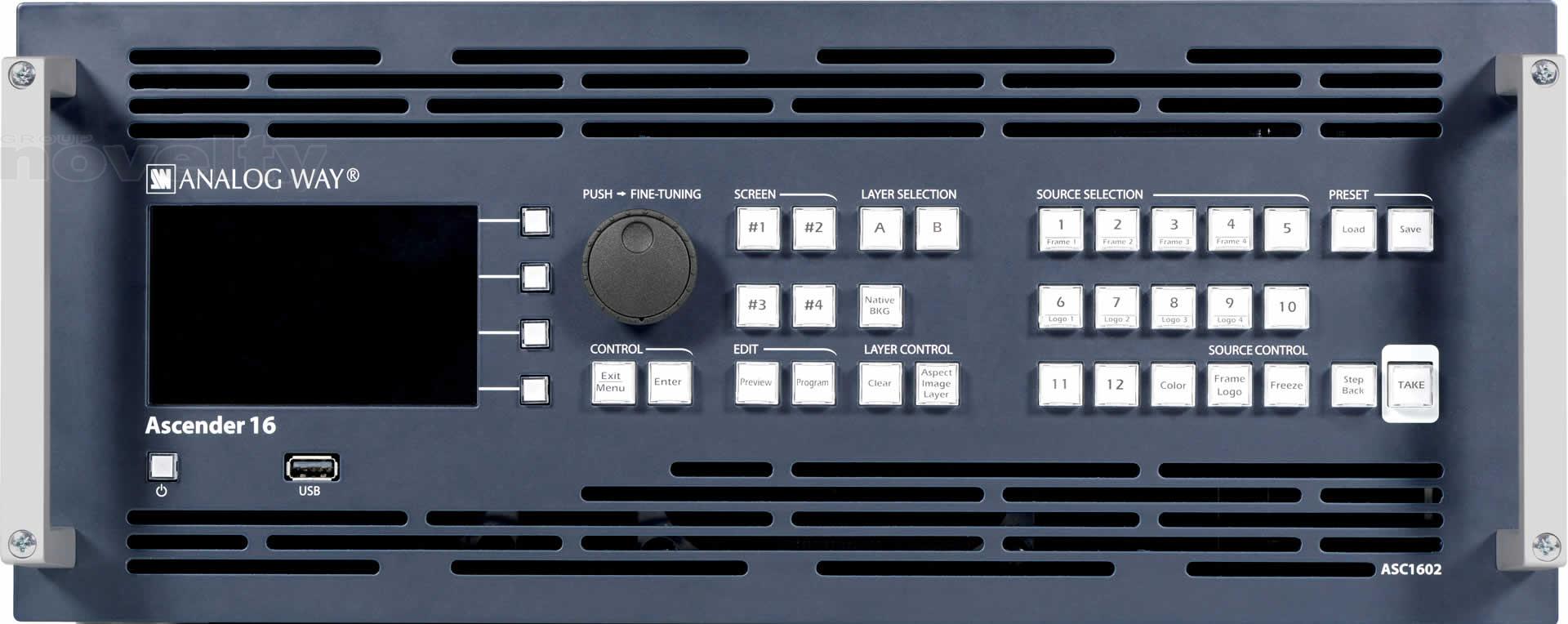

ANALOG WAY Ascender 16 (LiveCore) - ASC1602
Powerful multi-screen Seamless Switcher based on Analog Way’s LiveCore™ platform, offering state-of-the-art processing, Soft Edge and 4K capabilities for top-notch presentations
Full description
Ascender 16 at a glance:
- 12 seamless inputs and 42 input plugs?Independent Preview/Mosaic/Monitoring output
- Full live Preview of all sources (Preview/Mosaic/Monitoring)
- Customization of monitoring layouts (Up to 8 templates stored)
- 2 true-Seamless scaled layers + 1 native background layer per output
- Advanced Layer Management
- Rotation capability in output (step by 90 degrees)
- Outstanding visual effects
- Communicative architecture
- Ruggedized and heavy-duty design
- User-friendly and intuitive Graphic Interface
- Remote Services
- Additive modularity

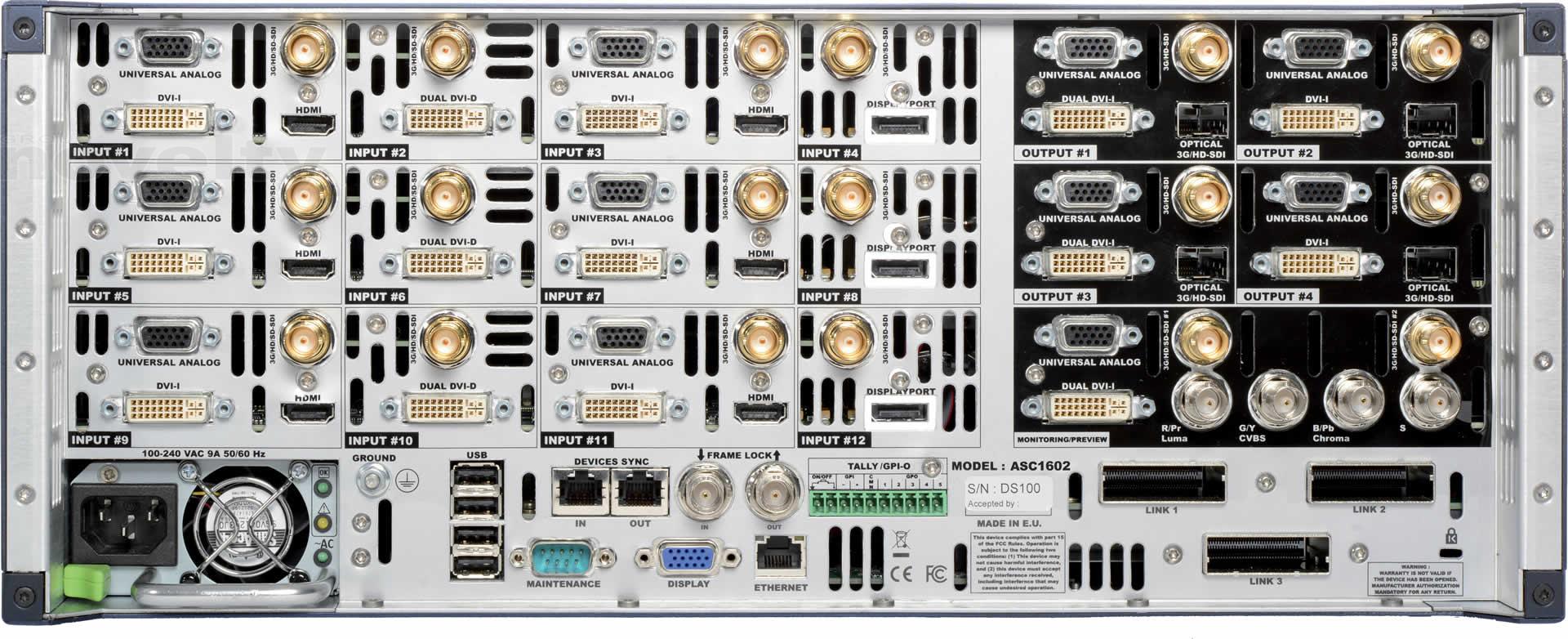

12 seamless Inputs and 42 input plugs
- 6 x HDMI?9 x DVI-I (3 DVI Dual-Link included)?3 x DisplayPort (4-Lanes)
- 12 x 3G/HD/SD-SDI
- 12 x UniversaI Analog (4 x HD15 & 4 x DVI-A)
4 Outputs with 5 output plugs
- Universal Analog (HD15 & DVI-A)
- DVI-I (DVI Dual-Link available on output #1 and #3)
- 3G/HD/SD-SDI
- Video Optical SFP module cage
Option
- 4K processing upgrade for the Ascender 16 (4K@30Hz 4:4:4/@60Hz 4:2:0/@60Hz 4:4:4)
- Upgrade from Ascender 16 to Ascender 32*? * The 4K resolution is not included in the hardware upgrade.
Informations
- Référence : Ascender 16 (LiveCore) - ASC1602
- Codart : ASCENDER16
- Télécharger nos catalogues PDF
Documents to download
Technical Sheet : Ascender 16 (DE) - Technical Sheet : Ascender 16 (FR)
- Technical Sheet : Ascender 16 (UK)
- Technical Manual : Quick Guide (UK)
- Technical Manual : Quick Guide (FR)
- Technical Manual : LiveCore Unit
