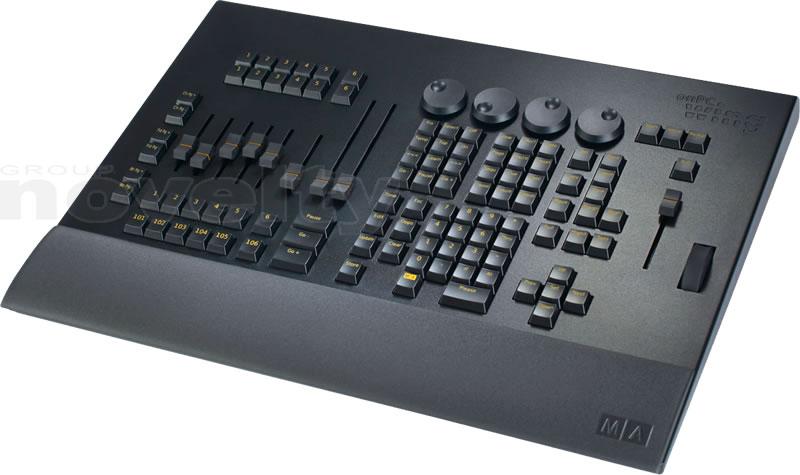

MA LIGHTING MA on PC Command Wing

Descriptions détaillées

• Real-time control for 2,048 parameters in combination with grandMA2 onPC (up to 65,536 parameters as backup in the MA system)
• Expandable up to 4,096 parameter
• Command section similar to grandMA2 layout
• 2 A/B faders (100mm)
• 1 Level-Wheel
• Individually backlit and dimmable silent (clickless) keys
• Integrated universal power supply (90-240V, 50-60Hz)
• Light (just 6kg), handy & rock solid
• Ergonomic design
• Just connect via USB to any PC running grandMA2 onPC

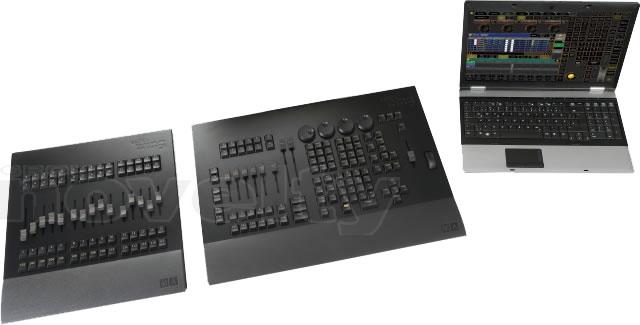

The  MA  onPC  command  wing  paves  the  way  for  mobile  use  of  the highly flexible and powerful grandMA2 control system. In combination with  the  free  of  charge  grandMA2  onPC  software,  the  MA  onPC command wing is a portable 2,048 parameter control solution that can be used in nearly any location – and all for an affordable price. It offers two built-in DMX ports as well as the possibilty to send two additional DMX universes via Ethernet.

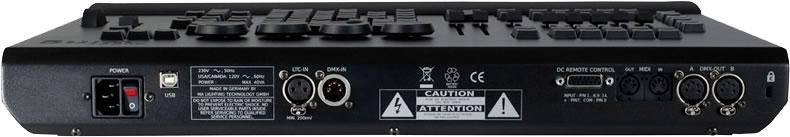

Designed  as  the  perfect  hardware  expansion  to  the  grandMA2  onPC software,  the  MA  onPC  command  wing  enables  the  look  and  feel  of the  software  to  be  as  close  to  a  real  grandMA2  console  as  possible. Thanks to the MA onPC command wing - incorporating the command section  of  the  grandMA2  consoles  -  it  has  never  been  easier  to  use the grandMA2 onPC software. With a simple USB connection between the MA onPC command wing and the computer running the grandMA2 onPC  software,  all  inputs  and  outputs  of  a  grandMA2  console  are available to the user. DMX, Midi, Timecode and Analogue Remote are all on hand directly at the MA onPC command wing. Wherever  it  is  physically  difficult  to  use  a  grandMA2  console,  the MA  onPC  command  wing,  in  conjunction  with  the  grandMA2  onPC software,  enables  the  customer  to  program  or  playback  within  the grandMA2 world. Therefore the MA onPC command wing is ideal to be used  as  a  backup  solution  within  the  grandMA2  system,  as  powerful control solution on the road or for smaller theatres, shows and clubs or for preprogramming. It is also possible to add more faders by connecting the MA onPC fader wing  to  the  MA  onPC  command  wing.  Moreover  the  MA  onPC  fader wing provides additional 2,048 parameters and four DMX lines. The MA

8Port Node onPC and MA 4Port Node onPC will add 2,048 parameters and eight or four DMX lines respectively.
