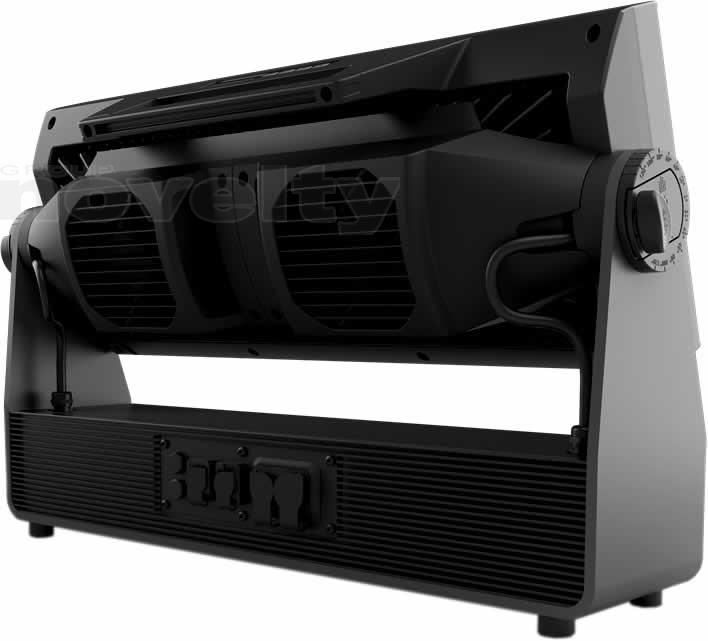

SGM P-10

Descriptions détaillées

Specific

• 39690 lumen 10º IP65-rated RGBW LED luminaire
• 48 x 24W LEDs with 8 individually controllable segments
• No color shifts / flicker-free operation
• Best-in-class optical color mixing and dimming performance
• CTC linear control from 2000K - 10000K
• Different beam angles available via holographic filter frames
• Practically maintenance-free
• User friendly display, wireless control, and integrated handle

Description
The SGM P-10 is a unique and extremely powerful all-in-one LED luminaire, ideal for stadiums, arenas, convention centers, high-rise office or hotel buildings, bridges, large format stage shows, sports, or any event that requires an ultra-bright and super-long throw lumianire. It carries the functionalities of a wash light, a strobe light, a flood light, a pixel light, and a direct-view blinder with a non-fading continuous output, making it the perfect multi-purpose LED fixture. It features a narrow native beam angle that can be modified through various optional magnetic and click-on accessory solutions such as holographic filters and barndoors.
For:

• Connection Diagram
• Dimension Drawing
• Photometric Report

LED Technology
This low-profile, rectangular, full color LED luminaire incorporates 48 high-power RGBW 24W LEDs, and delivers a staggering output of 39690 lumen. It features a superior dimming performance with velvet smooth fades and flicker-free operation. The LEDs expected lifetime is 50,000 hours.

?Colors
The SGM P-10 delivers best-in-class optical color mixing. It maintains the same accurate factory color calibration of the P series and the avoidance of color shifts. The P-10 delivers superb color rendering, and like all SGM wash lights, it is designed to achieve, not only deep reds and warm pastels, but also blue saturates, bright magentas, and soft turquoises.

?Optics
The 48 individual lenses of the P-10 deliver a native 10º beam angle with even distribution for long-throw applications. Its standard round and symmetrical beam can be manipulated with an optional set of magnetic holographic filters (19º, 45º, 63º/12º elliptical horizontal and 12º/63º elliptical vertical). Barndoors and an empty frame for custom filters are further available for optimum flexibility.

?IP rating
The durable IP65-rating of the P-10 luminaire ensures that the fixture is kept free of externally induced particles and liquids on internal optics and light sources, such as smoke fluid, dust, dirt, airborne pollution, and humidity. Thereby, the need to clean optics is eliminated and no internal corrosion will occur. It is ideal for outdoor applications, while being practically maintenance-free making it a sustainable and long-lasting choice for indoor events and installations as well.
?Dehumidification
The internal built-in dehumidifier protects this fixture from moisture, pollution and any other factors that can generate corrosion. The patented SGM dehumidification not only removes humidity but also prevents oxidation and condensation, while a gore-tex membrane equalizes internal pressure to prevent leaks. Learn more about dehumidification
?Photometrics
Engineered for any type of event, the P-10 luminaire helps to create staggering and intense high-power narrow effects over short throws, and extremely bright and even amounts of light over long distances with no unwanted artifacts. With the SGM P-10, it is possible to achieve bright beams, not only in white, but also in deep saturate colors. The P-10 also includes linear color temperature control from 2000K - 10000K.

Pixel mapping
For direct-view applications, the LEDs in the P-10 light fixture can be divided into eight individually controllable segments, generating wide-ranging color effects and pixel-mapping combinations for creative lighting designs. Each segment provides fast feedback, individual RGB control, and ultra-smooth dimming.

Powerful features
The P-10 luminaire also delivers many great additional features such as Plus / Minus Green control for fine tuning, a vast color filter emulation, Quick Color settings, different pixel and strobe pre-programmed macros and effects, and a super-fast strobe with duration and rate parameter adjustments. With added features of RDM capability and a Wireless DMX receiver, the P-10 is setting a new professional standard for production and arcitectural lighting needs.

Thermal management
To achieve optimum performance of the LEDs at all times, this bright and accurate luminaire is optimized to manage heat impact through SGM’s unique thermal management technology. The technology consists of a uniquely designed body and heat sink, which ensures optimal cooling of the LED chips. Additionally, the special aluminum alloy and surface treatment ensures maximum heat dispersion while the fan-assisted cooling ensures optimal performance at any time and under any conditions (such as variable temperatures, limited airflows, confined installation spaces, etc.).
Like all SGM LED products, the P-10 consists of SGM’s superior thermal management technology and tested under extreme hot and cold conditions, which ensures that the LEDs always operate within safe parameters. Learn more about SGM thermal management

Mounting options
Because of its integrated handle and included omega brackets, the SGM P-10 is easy to transport, to rig, and to focus. The P-10 comes with 3 x 2 ¼ turn locking points to allow the use of one or two clamps, enabling the fixture to be mounted in any position. The built-in safety wire eyelet in the base secures the unit when rigged.

Optical Data

• LED expected lifetime : 50,000 hours
• Lens : 10°
• Lightsource : 48 x high-power 24W RGBW LEDs

Photometric

• Beam angle(s)
  • 11° (with 10° lens)
  • 18° (with Med filter frame)
  • 47° (with Wide filter frame)
• Color temperature range : 2000K - 10000K
• Efficacy : 28 lm/W
• Light output all LEDs on : 39690 lm
• Light output blue : 2821 lm
• Light output green : 13535 lm
• Light output red : 7127 lm
• Lux @ 10m : 6052 lux
• Lux @ 3m : 67249 lux
• Lux @ 5m : 24210 lux
• Maximum Field Angle : 23 °

Physical

• IP class : IP65
• Lens material : PE and tempered glass front
• Material : Aluminium
• PC/ASA : Rubber Steel

Features

• Dehumidifier
• Base / Head
• Dimming
• Electronic : Emulation mode / effect
• Color Filter Emulation : Filters
• Magnetic easy-fit spread angle filters and color frame
• LED panel : 8 individually controllable segments
• Strobe : Ultra-high-speed strobe effects
• Tilt : 0 - 190°
• Tilt Locking System : Locking system with angle indicator

Electrical

• AC power, max. : 90 - 305V 50/60Hz
• AC Power, nominal : 100 - 277V 50/60Hz
• Electrical Protection : Overload protection with automatic recover
• Max Inrush Current : 79 A
• Max power consumption : 1400 W
• Power factor : 0.99 PF (230 V)
• Power Supply Unit : Auto-ranging electronic switch-mode
• Standby power consumption : 30 W
• Typical power consumption : 1150 W

Programming and Control

• 16-bit control :Dimmer, Red, Green, Blue
• Cabled DMX : 5 pin XLR input/output
• DMX channels : 4, 6, 8, 9, 10, 21, 27, 30, 32, 35, 52
• DMX modes : 13

Protocol

• CRMX, W-DMX™ G2, W-DMX™ G3, W-DMX™ G4, W-DMX™ G4S
• USITT DMX512A
• RDM ANSI E1.20
  • Setting and addressing
  • OLED graphical display / 4 buttons
• RDM ANSI E1.20
  • Standalone mode
  • Quick Color
• 3 programs with up to 24 scenes
• Wireless DMX
• Lumen Radio with RDM

Connections

• DMX data in/out : IP65 XLR 5-pin connector, Female, IP65 XLR 5-pin connector, Male
• Power : Power input connector & link-thru

Installation

• Mounting point : 3 x two quarter-turn locking points for two or three Omega Brackets
• Orientation : Any
• Rigging possibilities : Hanging (Omega Bracket included) or ceiling/wall mount (optional)
• Safety features : 2 attachment points for safety wire
• Minimum distance to combutible materials: 0.3 meter (11 in).

Thermal

• Cooling : Active, Forced Air, Temperature-regulated
• Humidity (max.) : 98 %
• Temperature range, Operating : -40°C to 50°C
• Temperature range, Start-up : -20°C to 50°C
• Temperature range, Storage : -40°C to 80°C
• Thermal Protection : Automatic overtemperature protection

Conforms To

• CE - 2014/30/EU: EMC Directive
• EN 55103-1
• EN 55103-2
• EN 55015
• EN 61547
• EN 61000-3-2
• EN 61000-3-3
• CE - 2014/35/EU: Low Voltage Directive
• EN 60598-1
• EN 60598-2-17
• EN 62471
• EN 60529
• RoHS2 Directive
• 2011/65/EU
