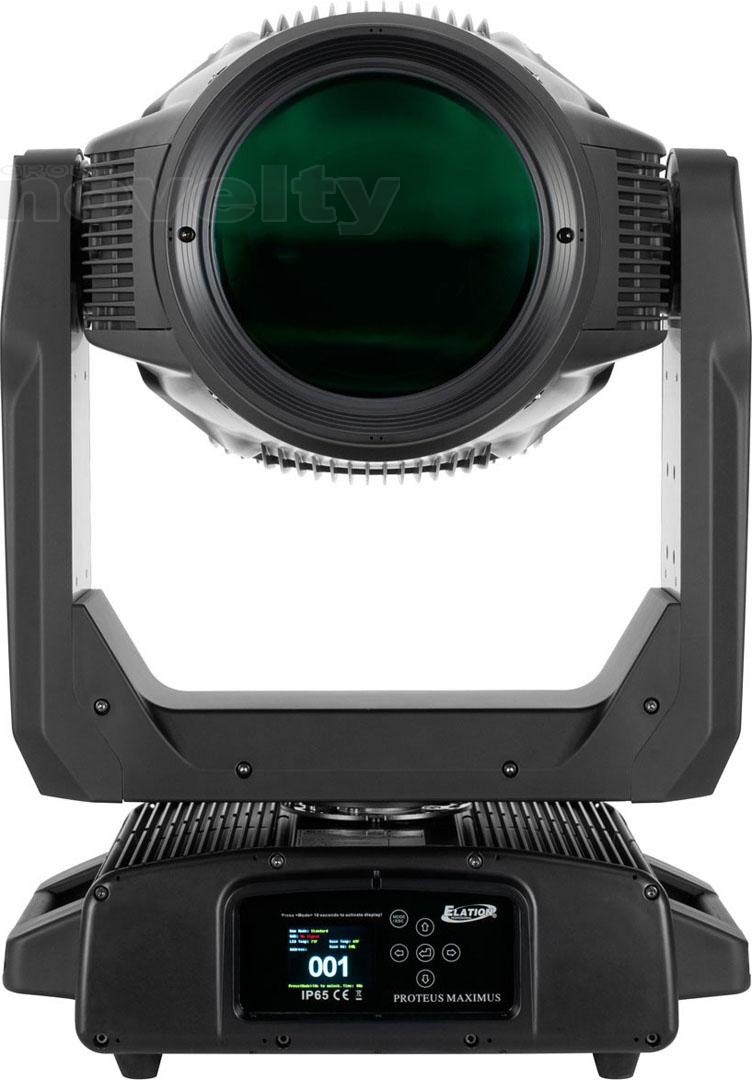

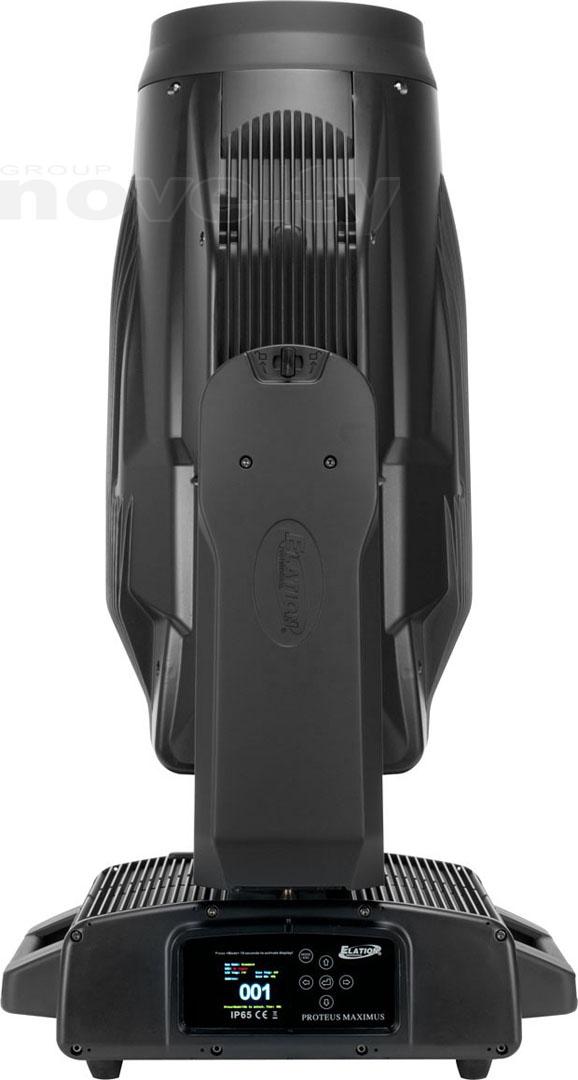

Elation Proteus Maximus
Projecteur asservi à LED 950W, type lyre, zoom 5,5°-55°
Descriptions détaillées
FEATURES
- IP65 Rated Dust and Water Protection
- Marine Grade Coated Anti-Corrosion Housing
- 50,000 Lumens IP Rated Profile Wash-Beam Luminaire
- 4-Blade Rotating Full Black Out Framing Shutter Module
- +/-50? Indexable Framing Shutter Module
- Advanced Internal Cooling and Heating System for Operation in Freezing or High Temperatures
- 5.5° - 55° Motorized Zoom
- Full 360? Bi-Directional Animation Wheel
- Full CMY-Flag Color Mixing System and Linear CTO Color Correction
- High CRI (>82) Filter
- 4-Facet and Linear, Rotating and Indexing Prisms
- 2 Linear Wash Frost Filters
- Pan/Tilt Lock
- Low Heat, Quiet Operation, Hibernation Mode (Power Save)
- Adjustable Refresh Frequency
- Variable Dimming Curves, Dim Modes and Dimming Delays
- Flicker Free Operation for Broadcast TV and Film
- 950W Cool White LED Engine
- 50,000 Total Output Lumens, 6,500K, CRI70 (CRI82 with HCRI Filter)
- 2:1 Hotspot Ratio
- 30,000 Hour Average Lamp Life*
- 124,119 LUX 11,531 FC @ 16.4’ (5m) (Min. Zoom)
- 4,096 LUX 381 FC @ 16.4’ (5m) (Max. Zoom)
- 4-Blade Rotating Full Black Out Framing Shutter Module
- +/-50? Indexable Framing Shutter Module
- Full 360° Bi-Directional Animation Wheel
- 4-Facet and Linear, Rotating and Indexing Prisms
- 2 Linear Wash Frost Filters
- Motorized Iris
- High Speed Electronic Shutter and Strobe
- Variable Dimming Curves, Dim Modes and Dimming Delays
- Full CMY-Flag Color Mixing System
- Linear CTO-Flag Color Correction
- High CRI (>82) Filter
- 6 Dichroic Colors + White (Open)
- 2 Gobo Wheels
- 6 Interchangeable / Rotating / Indexing Glass & Metal Gobos
- Size: OD 29.8mm / ID 25mm**
- 7 Static Interchangeable / Indexing Metal Gobos
- 2 DMX Channel Modes (37 / 61)
- DMX, Art-NET and sACN Support
- RDM (Remote Device Management)
- Adjustable Refresh Frequency (900 – 25,000Hz)
- 8 / 16 Bit Pan, Tilt and Dimming Control
- 6 Button Touch Control Panel
- Full Color 180° Reversible LCD Menu Display
- Battery Powered Menu Display

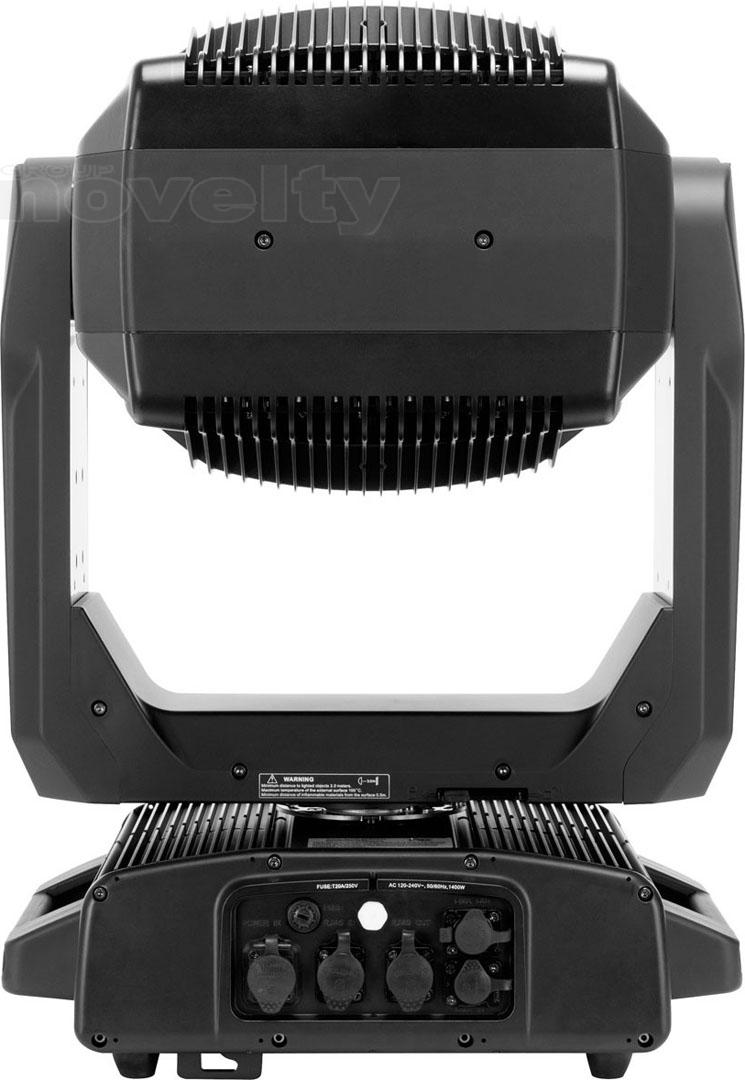

- 5pin IP65 DMX In/Out
- IP65 RJ45 etherCON In/Out (Art-NET and sACN)
- Power Twist TR1 Power In
- AC 100-240V - 50/60Hz
- 1,400W Max Power Consumption
- -4°F to 113°F (-20°C to 45°C)
- Foam Inlay

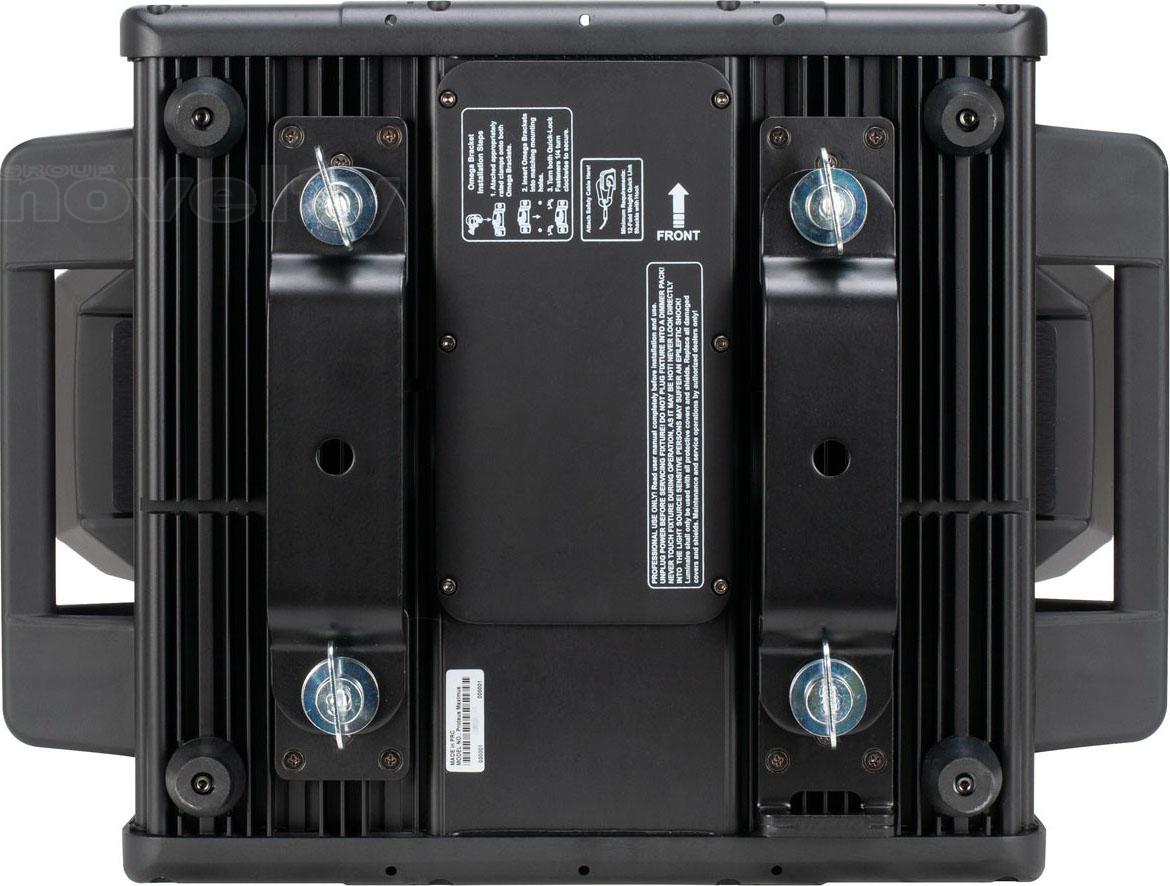

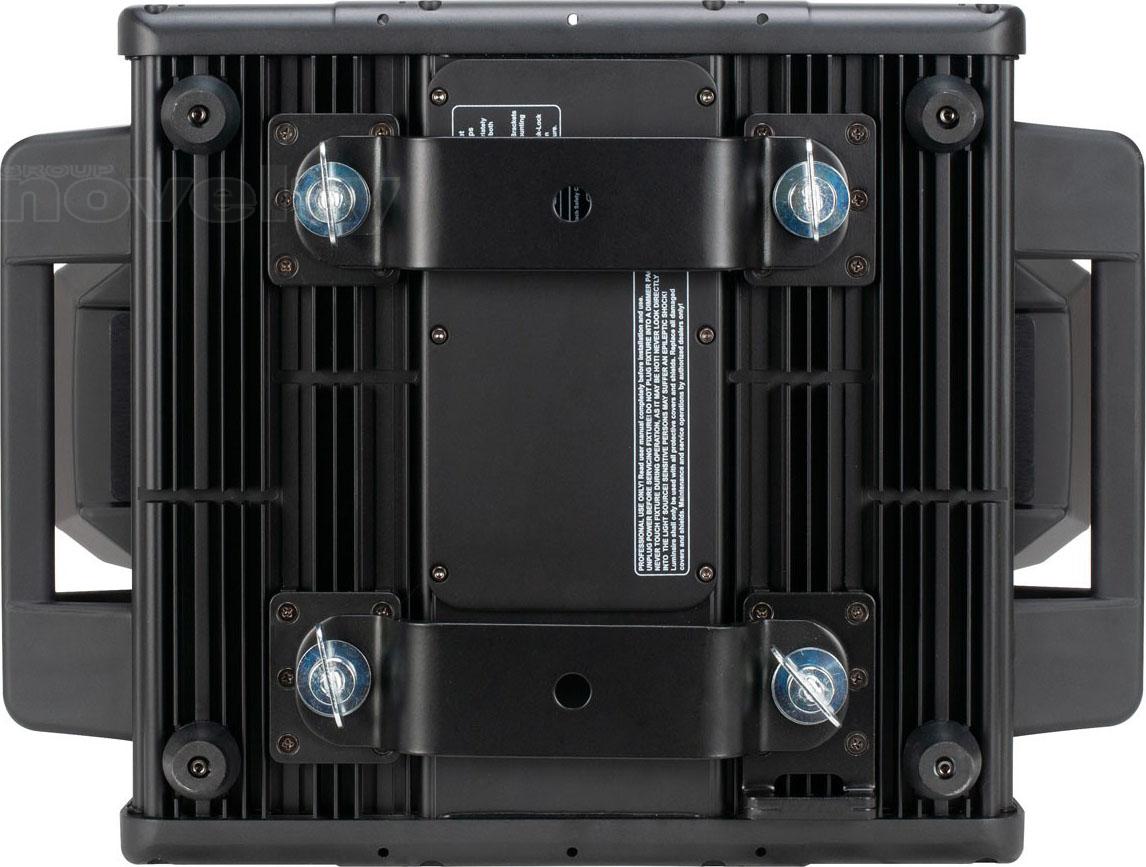

- 2 Omega Brackets
- Power Twist TR1 to CEE 7/7 Cable
- IP Ethercon Cable
- IP XLR Cable
**OD = Outside Diameter | ID = Image Diameter Due to varying manufacturing processes, it is highly recommended to provide a gobo and holder sample from the fixture to 3rd party custom gobo vendors for accurate sizing.
Informations
- Référence : Proteus Maximus
- Télécharger nos catalogues PDF
Propriétés techniques
- Consommation électrique : 1400 W
- Dimensions en flight-case (X2) : … x … x … cm

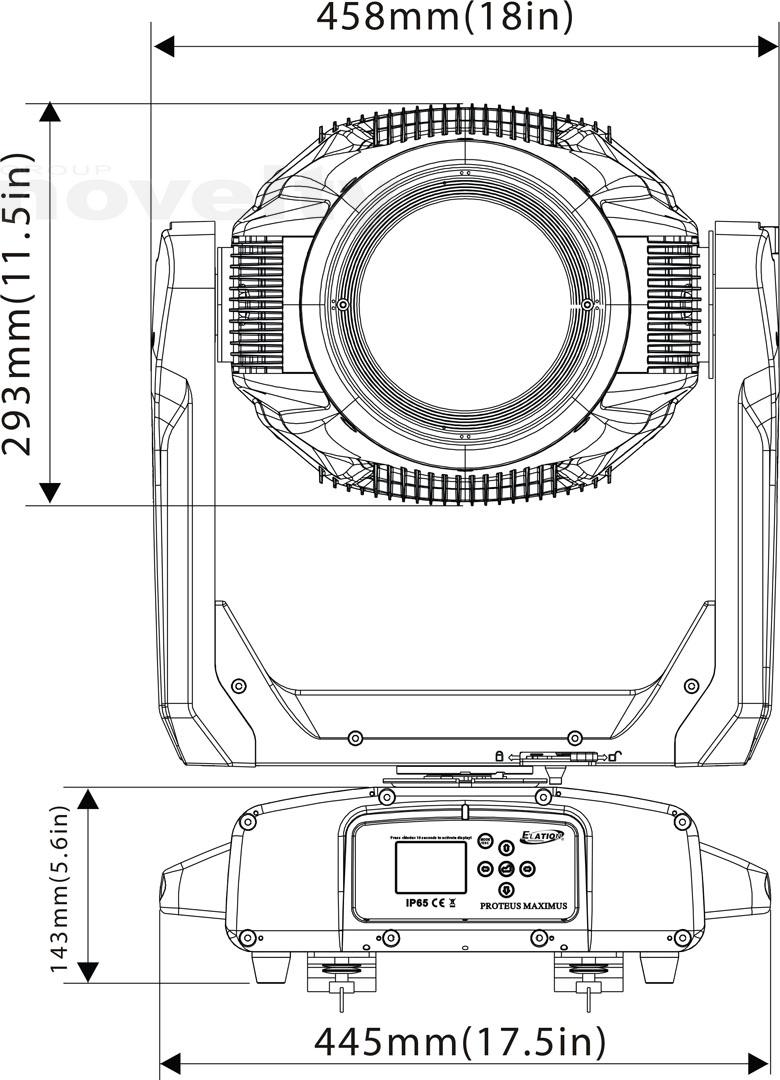

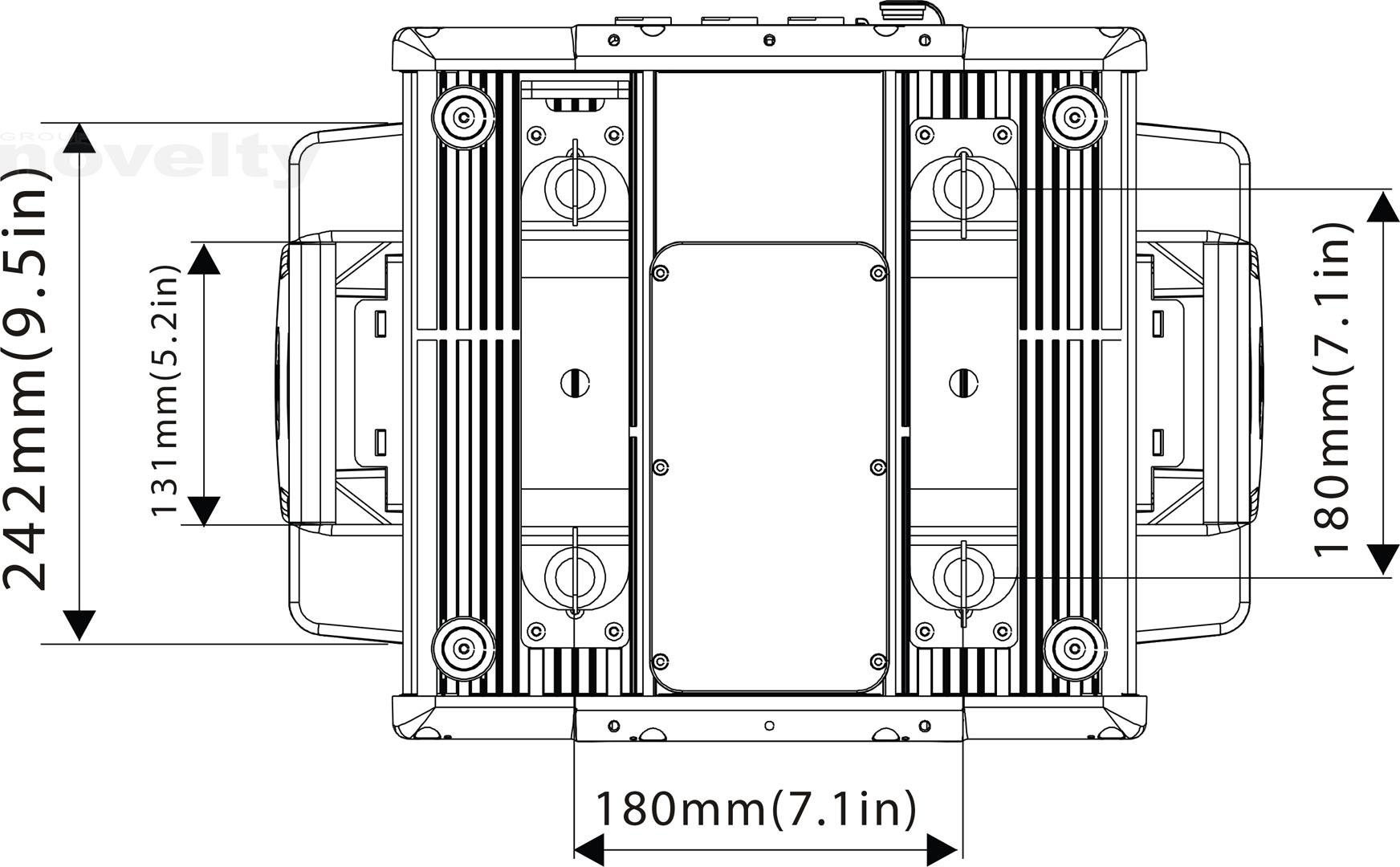

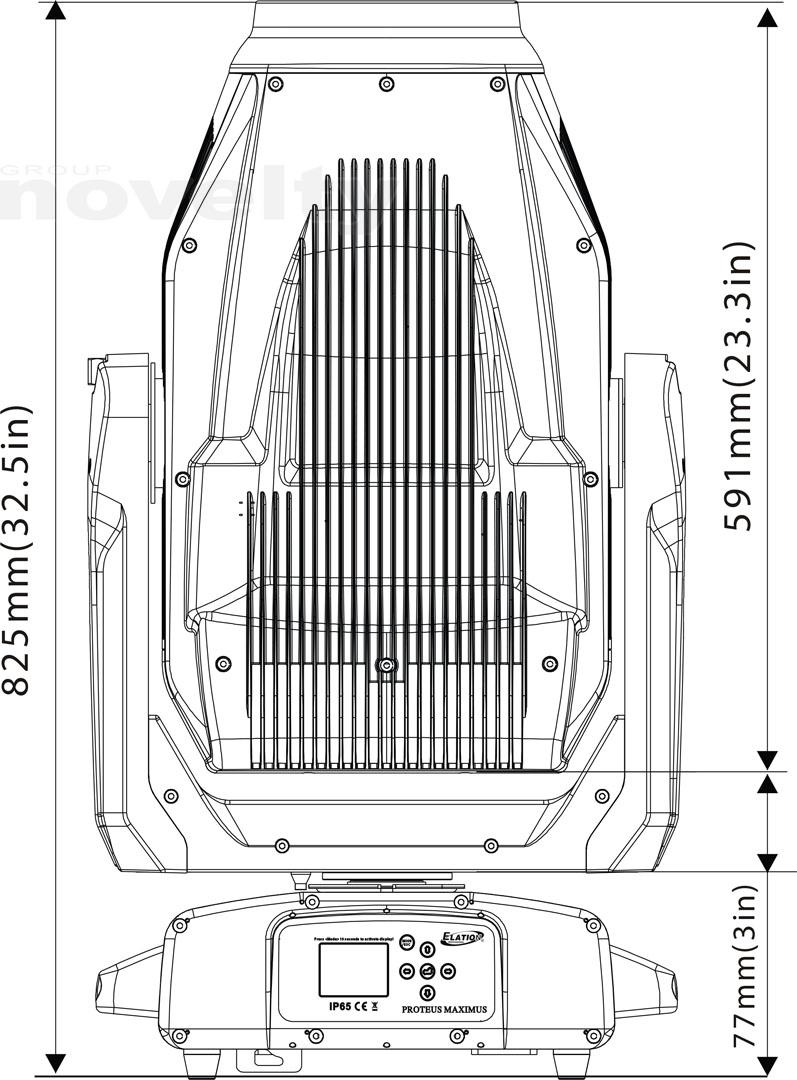

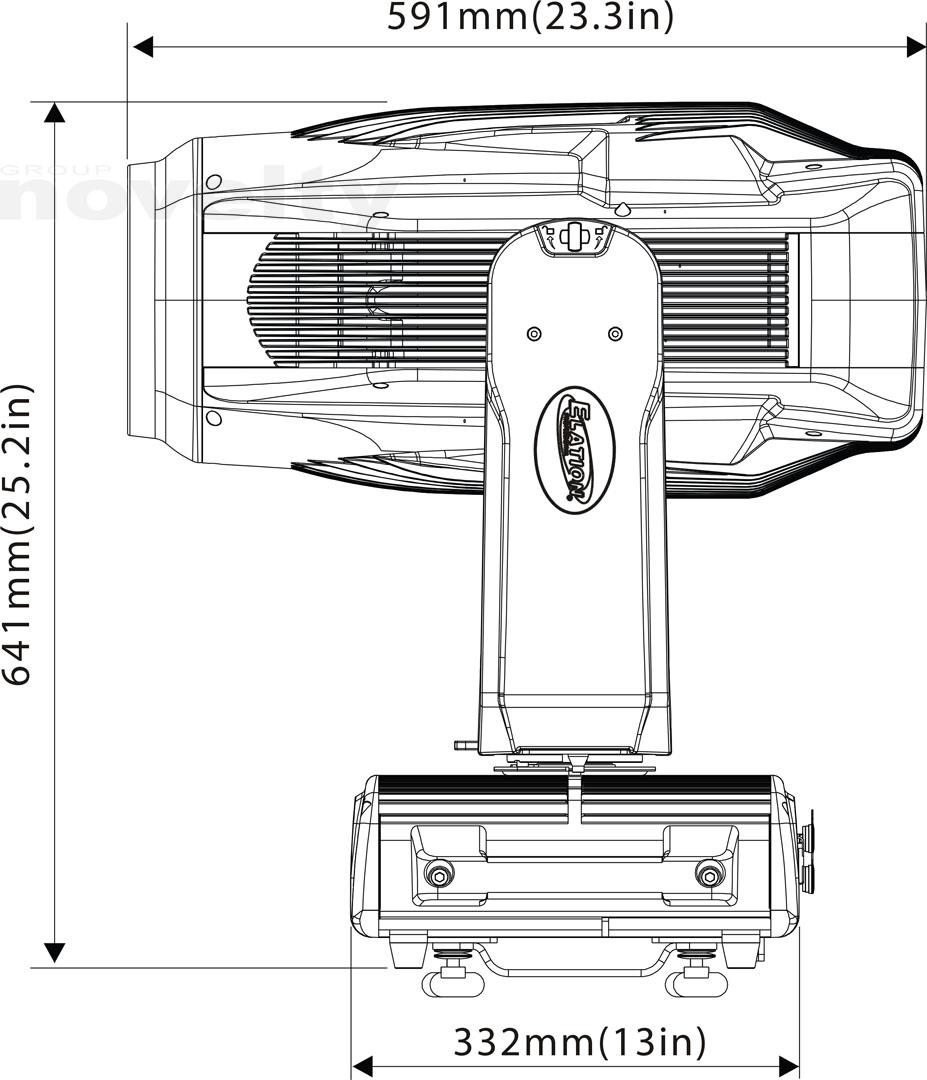

- Dimensions unitaires : 458 x 591 x 825 mm
- Poids en flight-case (X2) : … kg
- Poids unitaire : 55 kg (avec crochets)
- Poids unitaire : 53 kg (sans crochets)
Documents à télécharger
Manuel technique : Proteus Maximus - Abaques : DMX
