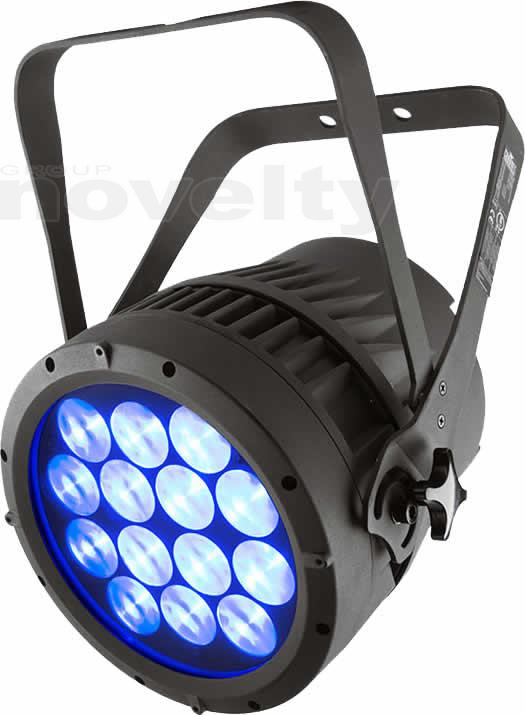

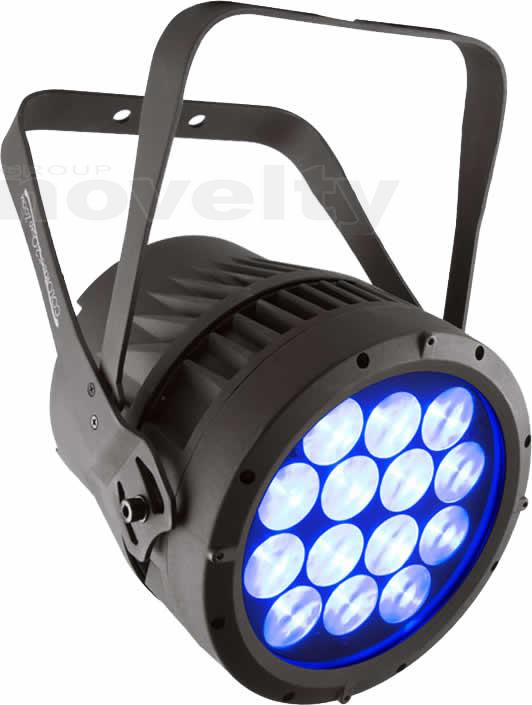

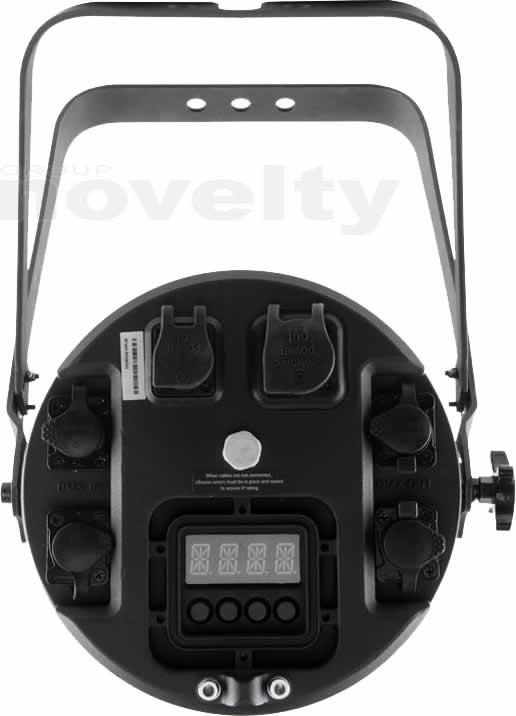

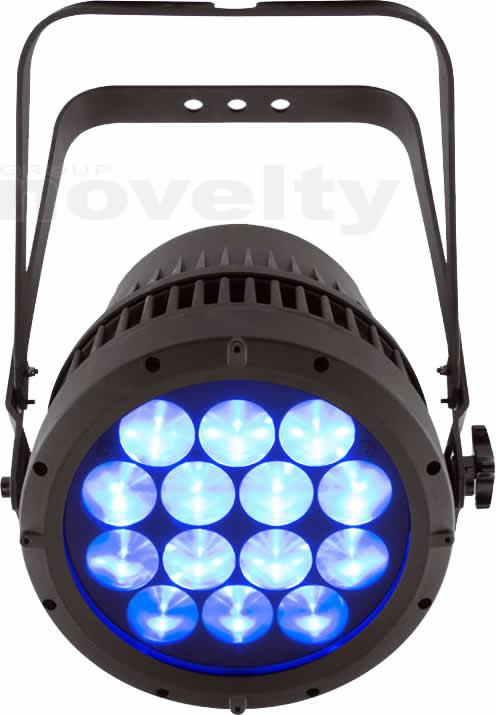

Chauvet COLORado 2 Quad Zoom IP MKII

Descriptions détaillées

COLORado™ 2 Quad Zoom IP is the one of the most powerful Par-style wash in the COLORado™ IP family, featuring 14 quad-color (RGBW) LEDs for maximum color-mixing effectiveness. The incorporation of wide-range zoom and 16-bit dimming curves lends considerable flexibility to designers who can use the same fixtures to highlight specific areas and flood a stage. IP66-rated connections and hardware ensure a long life, even when exposed to the elements.

FEATURES

• RGBW color mixing via DMX or manually
• Zoom control via DMX or manually
• Color temperature presets 3200 to 10000 K
• Built-in auto and custom programs recalled via DMX and Master/Slave
• 16-bit dimming of individual colors as well as master dimmer
• Selectable, smooth dimming curves for programming versatility
• Color macros with included speed adjustment
• Double-bracket yoke doubles as a floor stand
• IP 66 rated with M12 GORE® valve for assured internal equalization
• Edison to proprietary IP 66 power cable, comes with the unit
• 5-pin DMX to proprietary IP 66 data cable, comes with the unit
• LED display with password protection

SPECIFICATIONS

• DMX Channels: 3, 4, 5, 6, 7, 12 or 17
• Data Connectors: 5-pin XLR
• Light Source: 14 LEDs (quad-color RGBW) 15 W, (985 mA), 50,000 hours life expectancy
• Built-in Automated Programs: Yes
• Customizable Programs: Yes
• Recall Custom Programs: Yes
• Accessory Holder/Gel Frame Size: 9 in (229 mm)
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 20 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• PWM Frequency: 1,200 Hz
• Beam Angle: 6° to 30°
• Field Angle: 11° to 43°
• Zoom Angle: 11° to 43°
• Dimming Modes: 9
• Illuminance (11°): 8,000 lux @ 5 m
• Illuminance (43°): 695 lux @ 5 m
• Color Temperature (range): 2800 to 10000 K
• IP Rating: IP66, outdoor/wet, with pressure equalizing M12 GORE® valve
• Accessories (optional): Signal extension 16.4 ft (5 m)
• Accessories (optional): Power extension 16.4 ft (5 m)
• Power Connection: Edison plug to proprietary IP66 input power cord (65 in/1,651 mm)
• Power Input: Proprietary IP66
• Power Output: Proprietary IP66
• Power Linking: 7 units @ 120 V; 13 units @ 208 V; 14 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 206 W, 1.80 A @ 120 V, 60 Hz
• Power and Current: 216 W, 1.02 A @ 208 V, 60 Hz
• Power and Current: 217 W, 0.94 A @ 230 V, 50 Hz
• Approvals: CE, MET
