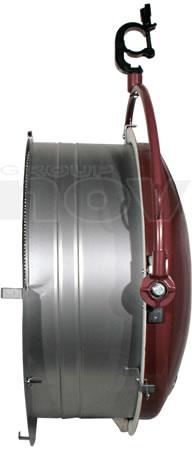

MOLE RICHARDSON Skylite 5000
Projecteur type "SkyPan", 5000W, 220V
Descriptions détaillées
The Mole Richardson 5K provides a soft fill-light for lighting backings or cycs in Television, Motion Pictures, and Still Photography. Diffuser Holder and Diffuser Frame are available separately for using diffusion materials for an even more soft fill-light.
When fitted with an optional 5K (DPY) bulb, this fixture will throw a beam of light of 145 footcandles 25.5 feet in diameter, from a distance of 20 feet. Optional diffusion material, and scrims are available to alter the light emitted.
- Steel reflector, with cast aluminum socket housing and switch cover.
- May be adapted for 220-240 volt use, with optional plug adapters and bulbs.
- Reflector surface has a special white coating.
- Rating : 5000 watts, 120 - 240V AC or DC, 41.6 Amps, 5,000 watts max
- Socket (Lampholder) : G38 Mogul bi-post, Mogul Bipost. Spring loaded contacts
- Switch : 60 amps, 125 volts heavy-duty double pole, snap action, mounted in rear of socket casting. Lens (Condenser) : n/a
- Reflector (Mirror) : Steel with white coating
- Mounting : Junior (1-1/8") pin
- Yoke : Tubular steel, brass castings with junior pin
- Cable : 3', Type SO, #6AWG, with MC257G stage pin plug
- Focusing : n/a
Informations
- Référence : Skylite 5000
- Codart : SKYLITE5000
- Télécharger nos catalogues PDF
Propriétés techniques
- Dimensions en flight-case (X2) : 121 x 84 x 103 cm
- Dimensions unitaires : Ø74 x32 cm
- Poids en flight-case (X2) : 91
- Poids unitaire : 14 kg
Documents à télécharger
Fiche technique : Skylite 5000
Catalogue MOLE RICHARDSON
