YAMAHA Ro8-D

Descriptions détaillées

La Ro8-D est l’alter-ego de la Ri8-D, elle offre 8 sorties analogiques sur une hauteur rack de 1U. Cette unité n’est pas dotée d’entrées.

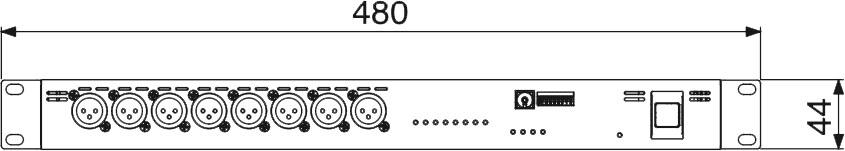

• Format rack 19" - 1U?
• 8x sorties?
• Fréquence d'échantillonnage interne: 44.1kHz, 48kHz, 88.2kHz, 96kHz?
• Fréquence d'échantillonnage externe:?
• 44.1kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm)?
• 48kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm)?
• 88.2kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm)?
• 96kHz: +4.1667%, +0.1%, -0.1%, -4.0?

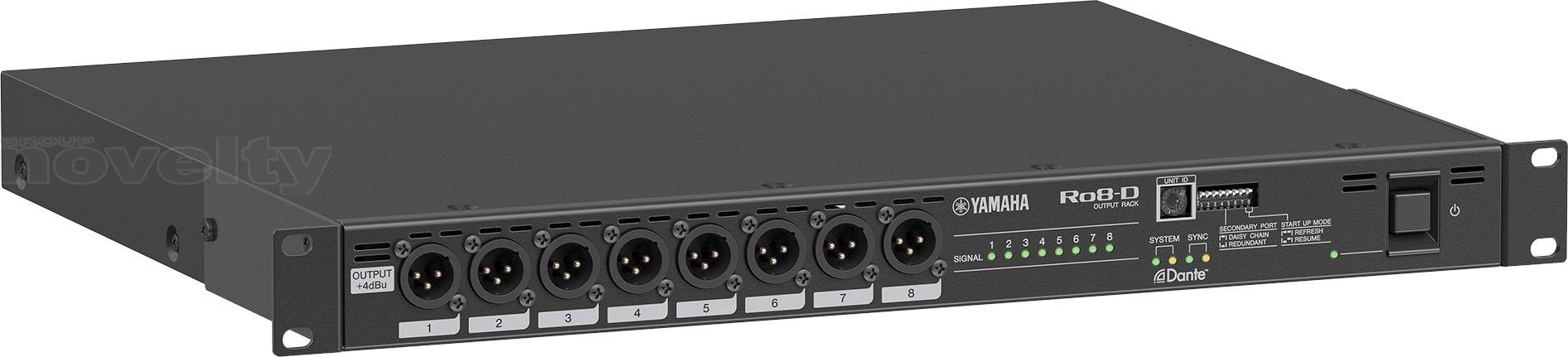

Yamaha RO8-D Dante Output Box : 8 Outputs
The Yamaha RO8-D is a Dante-compatible Output rack, featuring 8 analog outputs - 1RU.

Long Distance Dante Network Capability
Low-latency, low-jitter audio can be transferred over distances up to 100 meters* between devices via standard Ethernet cables using the Dante network protocol. The RO8-D can be used as a general-purpose Input box for the Dante network. Supported sampling rates are 44.1 kHz, 48 kHz, 88.2 kHz, and 96 kHz.?(* Depending on the type of cable used)

Direct Audio In/Out with a Connected Computer
Connecting the RO8-D with a standard Ethernet cable to a computer that has a Dante Virtual Soundcard installed enables you to directly input or output audio signals without using an audio interface device.

About DANTE
The RO8-D features Dante technology as a protocol to transmit audio signals. Dante is a network protocol developed by Audinate (link). It is designed to deliver multi-channel audio signals at various sampling and bit rates, as well as device control signals over a Giga-bit?Ethernet (GbE) network. Dante also offers the following benefits:

• Dante transmits up to 512 in/512 out, for a total 1024 channels (in theory) of audio over a GbE network. (The Rio3224-D features 32 in/24 out with a 24/32-bit resolution. The Rio1608-D features 16 in/8 out with a 24/32-bit resolution.)
• Dante-enabled devices will automatically configure their network interfaces and find each other on the network. You can label Dante devices and their audio channels with names that make sense to you.
• Dante uses high accuracy network synchronization standards to achieve sample-accurate playback with extremely low latency and jitter. Four types of latency are available on the Rio: 0.25 msec, 0.5 msec, 1.0 msec, and 5.0 msec. • Dante supports redundant connections via primary and secondary networks to defend against unforeseen difficulties.
• Connecting a computer to Dante network over Ethernet enables you to directly input or output audio signals without using any audio interface devices. By taking advantages of these benefits, you can skip any complicated procedures to automate connections and setups of Dante-enabled devices, remotely control I/O racks or amplifiers from a mixing console, or make multi-track recordings to a DAW, such as Nuendo, installed on a computer in the network.
