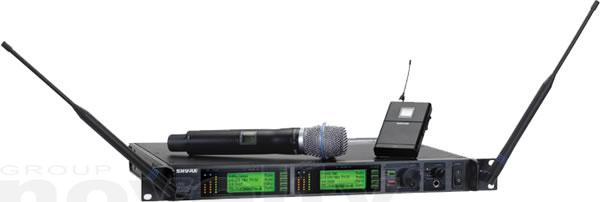

SHURE UR4D/UR1 x2

Système UHF double livré avec 2 émetteurs pocket UR1 (+ WL185, Beta98, WCM16 ou WH20) récepteur double 2400 fréquences

Descriptions détaillées


DESCRIPTION
The UHF-R® is a professional, wireless technology engineered for the
most demanding touring environments and installations. UHF-R®
wireless systems offer unprecedented flexibility and versatility. Using
multiple frequency bands, over 108 compatible systems can be used
simultaneously. Individual frequency bands deliver up to 60 compatible
systems per band. The UHF-R also includes infrared synchronization
that allows you to configure transmitter settings from the receiver. With
multiple system operation and interchangeable components, UHF-R
systems also offer a choice of Single or Dual Channel Diversity
Receivers.
SYSTEM FEATURE
Shure UHF-R® Wireless Systems offer many exceptional features,including:
Auto Frequency Selection/Scan
  •   Locates a clear channel instantly
Auto Transmitter Sync
  • Infrared (IR) sync automatically synchronizes the transmitter and receiver
Networking
Each receiver has an RJ-45 port on the back that lets you connect to
an Ethernet network. Networking receivers provides the following benefits:
  • Makes channel setup faster and easier
  • Allows you to monitor and control multiple receivers using the Shure Wireless Workbench PC Software
Shure’s Wireless Workbench Software
Key benefits of current Wireless Workbench software include:
  • Fast network setup of large groups of wireless systems:
  • Scans current RF environment.
  • Plots RF history, using an individual transmitter to identify potential areas of weak signals and dropouts.
  • Remote monitoring and control of multiple wireless systems.
  • Wireless Workbench provides faster setup and more complete control.
  • Automatic Frequency Selection Wizard: Will scan and select open frequencies, applying them to all Shure UHF-R receivers in network (and ultimately to connected networks of current UHF series receivers as well).
  • Comprehensive Infra-Red (IR) Auto Sync/Automatic Transmitter Setup: PC control of transmitter sync with corresponding receiver. Syncs frequency, lockouts, power setting,
  • custom groups.
  • Frequency Compatibility Calculator Wizard: By scanning the RF environment and then considering all networked hardware models, Wireless Workbench recommends frequencies for all specified wireless systems (including PSM systems, and competitive product). While this feature has a proprietary slant, a generic hardware “template” will be available for those users who insist on networking with non-Shure products)
  • The Band Limiting feature allows manufacturer or service center to set Network frequency band parameters, to align with any country/regional RF usage guidelines that might conflict with the available bandwidth.
  • Custom Frequency Group Creation allows customization of frequency groups to be used in specific locations. May require advanced wireless aptitude, or assistance from Shure’s Applications departments.
Shure’s patented Audio Reference Companding
  • Delivers a crystal clear audio transmission, superior to conventional wireless technology
UR4S & UR4D DIVERSITY RECEIVER FEATURES:
  • 2,400 Selectable frequencies across 60 MHz bandwidth
  • Track Tuning Filtering Technology
  • Up to 40 preset compatible systems/band (108 with multiple bands).
  • Network Automatic Frequency Selection
  • Automatic Transmitter sync (including custom Group Upload)
  • Flash memory to store six 60-channel custom frequency groups
  • Shure’s Patented Audio Reference Companding
  • Multi-function bit-mapped backlit LCD
  • Built-in USB & Ethernet network Control/Monitoring
  • AMX/Crestron Compatible
  • Remoteable 1/2 wave antenna
  • Temperature-activated fan ensures top performance in high temperature environments. Clean fan screen as needed to remove dust.
  • MARCAD® diversity

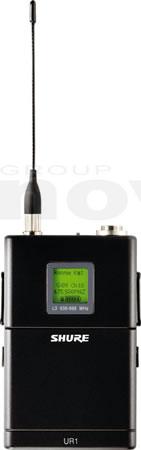

HANDHELD AND BODYPACK TRANSMITTERS FEATURES
  • Switchable RF Power (10/50 & 10/100 mW), country dependent
  • Low profile, compact bodypack design
  • Frequency and Power Lockout
  • Bit-mapped Backlit LCD
  • 2 AA Batteries - Up to 9.5 hours continuous use (low power)
  • Automatic Transmitter Setup
  • All-metal die-cast construction
  • Light-weight magnesium bodypack
  • Flexible bodypack antenna
  • Reversible Belt Clip

Logiciel de management des systèmes HF SHURE (U4D, UR4D)
Shure Wireless Worbench v5  Wireless Workbench v5.0, version Windows(fichier .EXE de 19 Mo)
Shure Wireless Worbench v5  Wireless Workbench v5.0, version Mac OS X(fichier .DMG de 50 Mo)

Shure Wireless Worbench v5    Shure Wireless Worbench v5

Shure Wireless Worbench v5    Shure Wireless Worbench v5
Informations
Propriétés techniques
  • Dimensions unitaires : 4,4 x 48,3 x 36,6 cm (UR4D)
  • Poids unitaire : 5 kg (UR4D)
Documents à télécharger
Catalogue SHURE

Matériels associés

  • Visuel Fiche complète : SHURE UA870WB
    SHURE UA870WB
    Antenne directive amplifiée large bande (470 à 900MHz). Gain antenne 7dB. Gain ampli +3dB / +10dB commutable
  • Visuel Fiche complète : SHURE UA845E
    SHURE UA845E
    Distributeur d'antennes actif, large bande, pour 5 récepteurs UR4S ou UR4D.
    Bande passante : 500 à 900 mHz
  • Visuel Fiche complète : SHURE WL185
    SHURE WL185
    Micro cravate MICROFLEX pour émetteur HF pocket UR1 livré avec bonnettes et pince. Spécial orateur. Cardioïde
  • Visuel Fiche complète : SHURE BETA98-HF
    SHURE BETA98-HF
    Micro miniature à capsule électret pour émetteur HF pocket UR1. Spécial cuivres, accordéon, percussions. Col de cygne et pince intégrée. Cardioïde
