SHURE SM58-HF

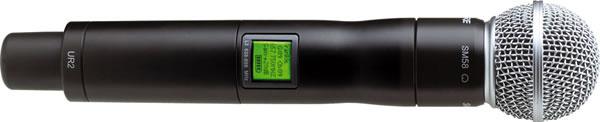

Emetteur microphone main UR2 avec capsule SM58. Cardioïde.


Descriptions détaillées

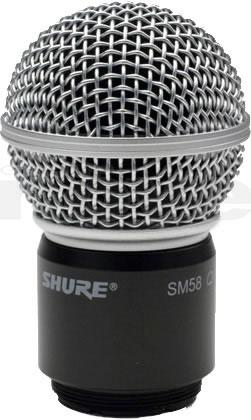

Features SM58® Vocal Microphone | ||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||
Features UR2 Handheld Transmitter | ||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||
Frequency Range and Transmitter Output Power | ||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||
RF Carrier Frequency Range | ||||||||||||||||||||||||||||||
518-865 MHz, depending on region | ||||||||||||||||||||||||||||||
Working Range | ||||||||||||||||||||||||||||||
150 m (500 ft.), under typical conditions 500 m (1600 ft) line-of-sight, outdoors for a single system | ||||||||||||||||||||||||||||||
Audio Frequency Response | ||||||||||||||||||||||||||||||
40 – 18,000 Hz,(+1 dB, –3 dB) | ||||||||||||||||||||||||||||||
Gain Adjustment Range | ||||||||||||||||||||||||||||||
UR2: –10 to +20 dB | ||||||||||||||||||||||||||||||
Modulation | ||||||||||||||||||||||||||||||
FM (45 kHz max. deviation), compander system with pre- and de-emphasis | ||||||||||||||||||||||||||||||
Signal Polarity | ||||||||||||||||||||||||||||||
Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on XLR output pin 2 with respect to XLR pin 3 and on the tip of the 1/4-inch output jack | ||||||||||||||||||||||||||||||
System Distortion (ref. ± 45 kHz deviation, 1 kHz modulation) | ||||||||||||||||||||||||||||||
<0.3% Total Harmonic Distortion typical | ||||||||||||||||||||||||||||||
Power Requirements | ||||||||||||||||||||||||||||||
UR2: Two 1.5V AA batteries | ||||||||||||||||||||||||||||||
Current Drain | ||||||||||||||||||||||||||||||
UR2: 180 mA max. (normal RF power setting) 240 mA max. (high RF power setting) | ||||||||||||||||||||||||||||||
Battery Life (Typical) | ||||||||||||||||||||||||||||||
UR2: 9.5 hours (low power) 6 hours (high power) | ||||||||||||||||||||||||||||||
Operating Temperature Range | ||||||||||||||||||||||||||||||
–18° to +57° C (0° to +135° F) | ||||||||||||||||||||||||||||||
UR2 Transmitter Audio Input | ||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||
UR2 Transmitter RF Output | ||||||||||||||||||||||||||||||
|
Logiciel de management des systèmes HF SHURE (U4D, UR4D) |
![]() ![]() |
![]() ![]() ![]() ![]() |
Informations
- Référence : SM58-HF
- Télécharger nos catalogues PDF
Propriétés techniques
- Dimensions unitaires : 26,1 x 5,1 cm
- Poids unitaire : 356g
Documents à télécharger
Manuel technique : UR2-SM58
Fiche technique : UR2-SM58
Fichiers : UR2-SM58 (brochure)
Catalogue SHURE
