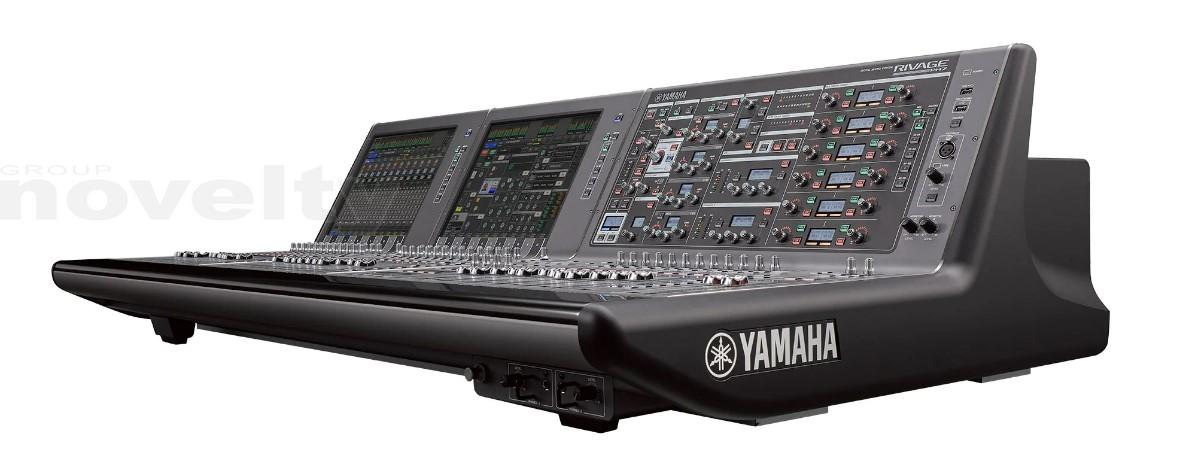

YAMAHA RIVAGE PM7

Descriptions détaillées

Specifications

Mixing Capacity

• Input Mixing channels :
  • Internal : 144
• Mix Buses :
  • Internal : 60
• Matrices :
  • Internal : 36 (Input to Matrix supported)
• Stereo buses : 2
• mono buses : 1
• cue bus : 2

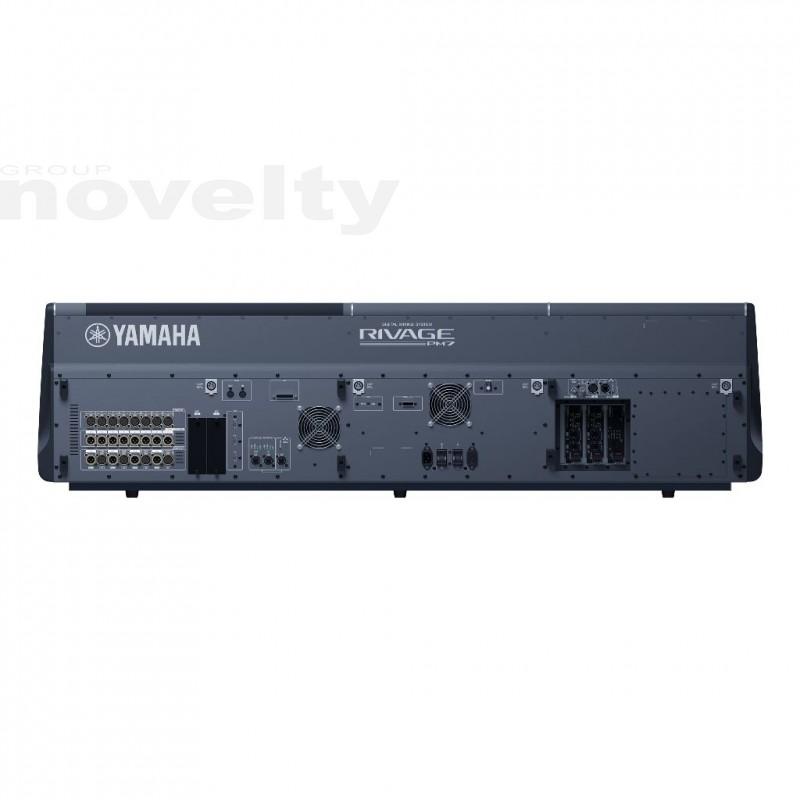

Local Connectors

• Analog : in : 8 (SILK)   |  out : 8
• Digital : AES in : 8  |  AES out : 8
• Expansion Slot : HY : 3  |  MY : 2
• GPI : IN : 8  |  OUT : 8
• Word clock : OUT
• MIDI : IN/OUT
• USB : File : 4  | rec/play : 1
• Redundant PSU : Yes (Built in dual PSU)
• Meter Bridge : On screen
• Lamp : 4
• Talkback In : Yes
• Video Out : Yes
• TC In : Yes
• Fault Output : Yes
• Phones : 2 connectors
• AC Inlet : 2 (V-Lock Type)

Scene Memory

• Number of Scenes : 1000
• Recall Safe : Yes
• Focus Recall : Yes
• Fade Time : Yes (0s ~ 60s)
• Preview : Yes
• Selective Load / Save : Yes
• Global Paste : Yes
• Event List : Yes
• Overlay : Yes
• Isolate : Yes
• Tactile Control Keys : Yes

Input Channel Functions

• Gain Compensation : Yes
• Silk : Yes (with RPio)
• Digital Gain : Yes (-96dB ~ +24dB)
• ATT : Yes
• HPF : 20Hz~2000Hz, -6/-12/-18/-24dB/oct Selectable
• PEQ : 4 Band Full PEQ (4 algorithms, RTA overlay support)
• Dynamics 1 : Legacy Comp / Comp260 / Gate / De-Esser / Expander / Ducking
• Dynamics 2 : Legacy Comp / Comp260 / Gate / De-Esser / Expander / Ducking
• Input Delay : Yes (0ms ~ 1000ms)
• Pan : Center Nominal
• DCA Group : 24 (Output DCA support)
• DCA Rollout : Yes
• MUTE Group : 12
• Number of Inserts : 4 slots on each 2 insert point
• Direct Out : Yes

Output Channel Functions

• PEQ : 8 Band Full PEQ
• GEQ : Plug-in
• Dynamics 1 : Legacy Comp / Comp260 / Gate / De-Esser / Expander / Ducking
• Output Channel Delay : Yes (0ms ~ 1000ms)
• MUTE Group : 12
• Number of Inserts : 4 slots on each 2 insert point

Plug-in

• Number of Slots : DSP-RX / Internal : 384 (CSD-R7)
• Number of Effect Programs : More than 50

GEQ Rack

• Number of GEQ Racks : 48
• Mountable Device : 31BandGEQ / Flex15GEQ / 8Band PEQ (RTA overlay support) / Dugan Automixer

TWINLANe

• Number of I/O Channels (per card) : 256 in / 256 out (with HY256-TL)

Dante

• Number of I/O Channels (per card) : 144 in / 144 out (with HY144-D/HY144-D-SRC)
• Number of I/O devices that can be discovered from the console *1 : 127 (with HY144-D/HY144-D-SRC)
• Number of I/O devices that can be mounted *2 : 48?with HY144-D/HY144-D-SRC)
• Number of I/O devices with HA remote control *2 : 48?with HY144-D/HY144-D-SRC)

MADI

• Number of I/O Channels (per card) : 64 in / 64 out @96kHz, 128 in / 128 out @48kHz (with HY128-MD)

Recording

• USB Memory Recording : Yes
• DVS Recording : Yes (with HY144-D)

Broadcast Functions

• 5.1 Surround Panning : Yes
• Surround Monitor : Yes
• Mix Minus : Yes
• L-Mono / R-Mono / LR-Mono : No

Monitor

• Solo Mode : Yes
• Oscillator : Sine Wave 1ch / Sine Wave 2ch / Pink Noise / Burst Noise

Other Functions

• Port to Port : Yes
• Dual Console : Yes
• DSP Mirroring : No
• Timecode Reader/Display : Yes
• Timecode Chase (Event List) : Yes
• GPI/MIDI : Yes
• RTA : Yes
• Output Port Delay : Yes (0ms ~ 1000ms)
• Mix/Matrix to Input : Yes
• Sub In : Yes
• Theatre Mode : Yes

User Interface

• Display : 15 inch Touch Panel x 2
• Centralogic Section : Yes
• Faders : 12 + 12 + 12 + 2
• Selected Channel Encoders : All Parameters
• Channel Encoder : Yes
• Channel Name / Color Display : Yes
• Custom Fader Banks : Yes (6 x 5 on each bay)
• User Defined Keys : 12 (x 4 banks)
• User Defined Knobs : 4 (x 4 banks)
• Touch and Turn Knob : Yes (2)
• Monitor Level Knob : Yes (2: A and B)
• Wooden Arm Rest : Yes

Software

• Editor : RIVAGE PM Editor
• StageMix : RIVAGE PM StageMix
• MonitorMix : Yes (V4.0 or later)
• Console File Converter : Yes

Dimensions (WxHxD) : 1,549 x 417 x 848 mm (61.0" x 16.4" x 33.4")
Net Weight : 94 kg (207 lbs)
