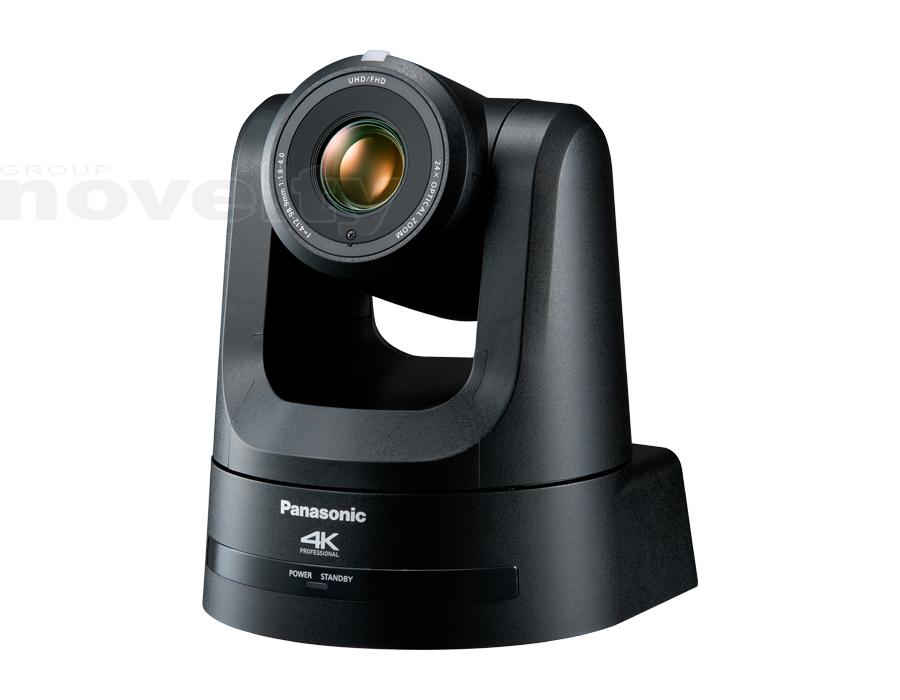

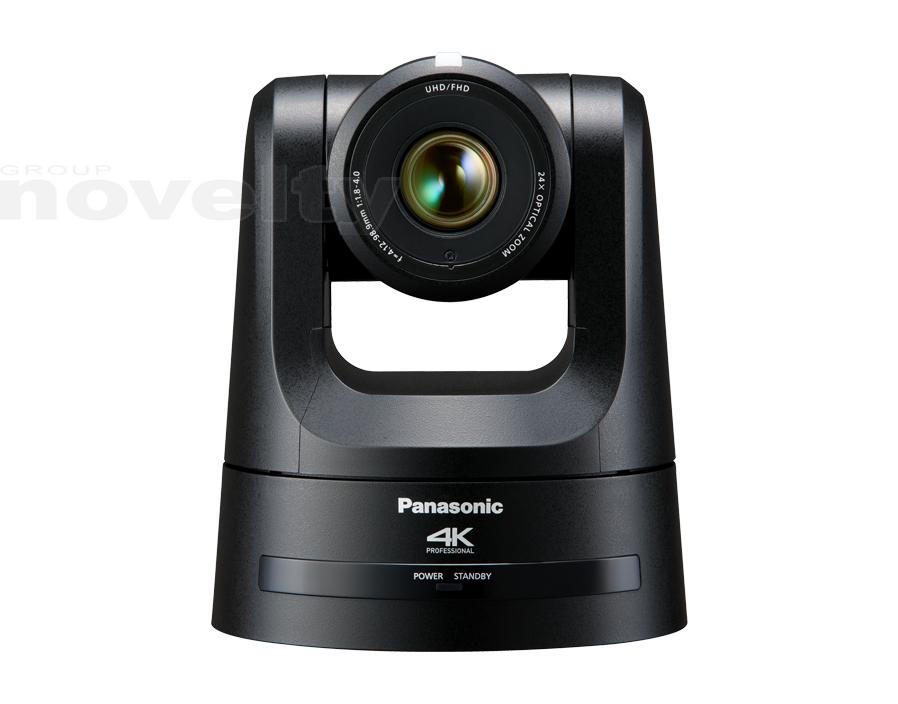

PANASONIC AW-UE100

Descriptions détaillées

Specifications

General

• Power Requirements : 12 V DC (10.8 V to 13.2 V) (Supplied AC adaptor), 42 V to 57 V DC (PoE++ power supply)
• PoE++ : IEEE802.3bt standard: DC 42 V to 57 V
• (Software authentication (LLDP) is supported)
• Current Consumption : 3.0 A (Supplied AC adaptor), 1.0 A (PoE++ power supply)
• Ambient Operating Temperature : 0 °C to 40 °C (32 °F to 104 °F)
• Allowable Humidity Ranges : 20 % to 90 % (no condensation)
• Storage Temperature –20 °C to 50 °C (–4 °F to 122 °F)
• Mass :
  • Approx. 2.2 kg (4.84 lb) (excluding cable cover, mount bracket)
  • Approx. 2.3 kg (5.06 lb) (including cable cover, excluding mount bracket)
• Dimensions (W x H x D) : 169.2 mm x 204.6 mm x 170.6 mm (6-21/32 inches x 8-1/16 inches x 6-23/32 inches) (excluding protrusions, cable cover, mount bracket)
• Controller Supported : AW-RP150, AW-RP60, AK-HRP1010GJ, AK-HRP1015GJ (Not available in some areas), AK-HRP250GJ

Camera Unit

• Imaging Sensors : 1/2.5-type 4K MOS x 1
• Effective Pixels : Approx. 8,490,000 pixels
• Lens :
  • Motorized Optical 24x zoom, F1.8 to F4.0 [f=4.12 mm (5/32 inches) to 98.9 mm (3?29/32 inches); 35 mm (1?3/8 inches) equivalent: 25.0 mm (31/32 inches) to 600.0 mm (23?5/8 inches)]
• Zoom :
  • Optical zoom: 24x
  • i.Zoom: UHD 28x, FHD 36x
  • Digital zoom: 1.4x, 2x
• Conversion Lens : Not supported
• Angle of View Range :
  • Horizontal angle of view: 74.1° (wide) to 3.3° (tele)
  • Vertical angle of view: 46.0° (wide) to 1.9° (tele)
  • Diagonal angle of view: 81.8° (wide) to 3.8° (tele)
• Optical Filter : Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”)
• Focus : Switching between auto and manual
• Focus Distance :
  • Entire zooming range: 1200 mm (3.9 ft)
  • Wide end: 100 mm (0.33 ft)
• Color Separation Optical System : 1MOS
• Standard Sensitivity :
  • F4, 2000 lx (When normal mode is selected)
  • F5.6, 2000 lx (When High Sens mode is selected)
• Minimum Illumination : 3 lx (F1.8, 59.94p, 50IRE, 42 dB, without accumulation)
• S/N : 60dB(typ) (When [Shooting Mode] is [Normal])
• Horizontal Resolution : 1500 TV lines Typ (Center area)
• Gain Selection :
  • Auto, 0 dB to 36 dB*1
  • Super Gain function equipped : 37 dB to 42 dB
• Frame Mix*2 : Auto, 0 dB, 6 dB, 12 dB, 18 dB, 24 dB
• Electronic Shutter Speed
  • 59.94p/59.94i : 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
  • 29.97p : 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
  • 23.98p/24p : 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
  • 50p/50i : 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
  • 25p : 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
• Synchro Scan :
  • 59.94p/59.94i : 60.00 Hz to 7200 Hz
  • 29.97p : 30.00 Hz to 7200 Hz
  • 23.98p/24p : 24.00 Hz to 7200 Hz
  • 50p/50i : 50.00 Hz to 7200 Hz
  • 25p : 25.00 Hz to 7200 Hz
• Gamma : HD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3
• White Balance :
  • ATW : 3200K, 5600K
  • AWB : AWB-A / AWB-B
  • VAR (selectable between 2000K and 15000K by designating a value)
• Chroma Amount Variability : OFF, –99 % to 99 %
• Scene File : Scene1, Scene2, Scene3, Scene4
• Output Format :
  • SDI Output 4K : 2160/59.94p, 2160/50p, 2160/29.97p*3, 2160/25p*3, 2160/24p*3, 2160/23.98p*3
  • SDI Output HD :
    • 1080/59.94p, 1080/50p, 1080/29.97p*3, 1080/29.97PsF, 1080/25p*3, 1080/25PsF, 1080/23.98p*4, 1080/24p*3, 1080/23.98p*3, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
  • HDMI Output 4K : 2160/59.94p, 2160/50p, 2160/29.97p*3, 2160/25p*3, 2160/24p*3, 2160/23.98p*3
  • HDMI Output HD : 1080/59.94p, 1080/50p, 1080/29.97p*3, 1080/25p*3, 1080/23.98p*10, 1080/24p*3, 1080/23.98p*3, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p

Synchronization System
Internal/External synchronization (BBS/Tri-level sync)

Input

• Input Connector :
  • DC 12 V IN, G/L IN : BBS (Black Burst Sync), tri-level sync supported 75 Ω terminal (BNCx1)
  • MIC/LINE input :
    • Compatible (SDI/HDMI/IP)
    • AAC compatible (compatible with IP only)
    • ø 3.5 mm stereo mini jack
    • Input impedance: Approx. 10 kΩ (unbalanced)
      • During MIC input
        • Input level: –40 dBV (0 dB=1 V/Pa, 1 kHz)
        • Plug-in power compatible, supply voltage: 2.5 V ± 0.5 V
      • During LINE input
        • Input level: –10 dBV
      • Input volume variable range: –36 dB to 12 dB (3 dB step)
      • Embedded audio output level: –12 dBFS
      • Sampling frequency: 48 kHz
      • Quantization bit rate: 24bit (SDI, HDMI), 16bit (IP)

Output

• Video Output :
  • HDMI HDMI 2.0 connector
  • 4:2:2/10bit
    • HDCP is not supported.
    • Viera Link is not supported.
  • 12G-SDI OUT :
    • SMPTE 2082-1, SMPTE424M/SMPTE292M / 75 Ω (BNC x 1)
      • Level-A/Level-B supported
  • 3G-SDI OUT :
    • SMPTE424M/SMPTE292M / 75 Ω (BNC x 1)
      • Level-A/Level-B supported

Input/Output

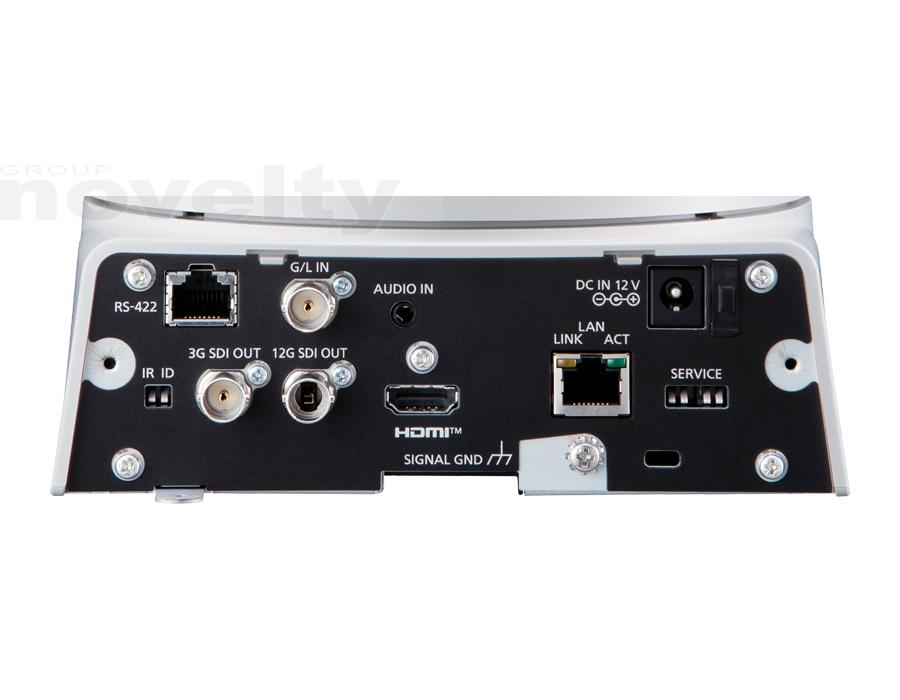

• Input/Output Connector :
  • LAN : LAN terminal for IP control and video transmission (RJ?45) ; PoE++ power terminal (IEEE802.3bt compliant)
• RS-422 : CONTROL IN RS-422A (RJ?45)

Pan-tilt Head Unit

• Camera/Pan-tilt Head Control :
  • IP connecting cable : LAN cable*5:(category 5e or above, straight cable), max. 100 m (328 ft)
  • AW protocol connecting cable : LAN cable*5:(category 5e or above, straight cable), max. 1000 m (3280 ft)
• Installation Method : Stand-alone (Desktop) or suspended (Hanging)*6
• Pan/tilt Operation Speed :
  • Speed range: 0.08°/s to 60°/s (Normal mode)
    • 3 speed modes installed
  • Normal: 60°/s, Fast1: 90°/s*7, Fast2: 180°/s*7
• Panning Range : ±175°
• Tilting range : -30° to 210°*8
• Quietness : NC25 or less

Supported Operating Systems and Web Browsers*9

• Supported Operating Systems and Web Browsers :
  • Windows
    • Microsoft® Windows® 10
    • Microsoft Edge
    • Google Chrome
  • Mac
    • MacOS 10.13/Safari 13, MacOS 10.14/Safari 13
    • MacOS 10.15/Safari 13, MacOS 10.15/Google Chrome
    • iPhone / iPad iOS
    • Safari
    • iPadOS
  • Android
    • Android OS
    • Google Chrome

IP Streaming

• Image Streaming Mode : JPEG (MJPEG), H.264, H.265, NDI®|HX, High Bandwidth NDI®
• Image Resolution : 3840x2160, 1920x1080, 1280x720, 640x360, 320x180
• Image Transmission Setting (JPEG) :
  • Frame Rate: Maximum 30 fps
  • Image quality (Fine / Normal)
• Image Transmission Setting (H.264) :
  • Transmission Type
    • Unicast port (AUTO)
    • Unicast port (MANUAL)
    • Multicast port
  • Transmission Priority
    • Constant bit rate
    • Frame rate
    • Best effort
  • Frame Rate :
    • [60Hz] 5fps / 15fps / 30fps / 60fps (UHD: 30fps, 60fps)
    • [50Hz] 5fps / 12.5fps / 25fps / 50fps (UHD: 25fps, 50fps)
  • Max Bit Rate :
    • 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps / 32768kbps / 40960kbps / 51200kbps / 76800kbps
• Image Transmission Setting (H.265) :
  • Transmission Type Unicast port (AUTO)
    • Unicast port (MANUAL)
    • Multicast port
  • Frame Rate :
    • [60Hz] 30fps
    • [50Hz] 25fps
  • Max Bit Rate : 8192kbps / 12288kbps / 25600kbps / 51200kbps / 76800kbps
• Audio Compression : Type AAC-LC, 48 kHz / 16 bit / 2ch
• Supported Protocol :
  • IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTP, MLD, ICMP, ARP, RTMP, SRT, SNMP, MPEG2-TS over UDP
  • IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP/RTCP, DHCP, DNS, DDNS, NTP, IGMP, ICMP, ARP, RTMP, RTMPS, SRT, SNMP, MPEG2-TS over UDP

Other Function

• NDI support
  • NDI®|HX version 2 : Included as standard
  • High Bandwidth NDI®: Included as standard
• Tally LED Display Color : red / green
